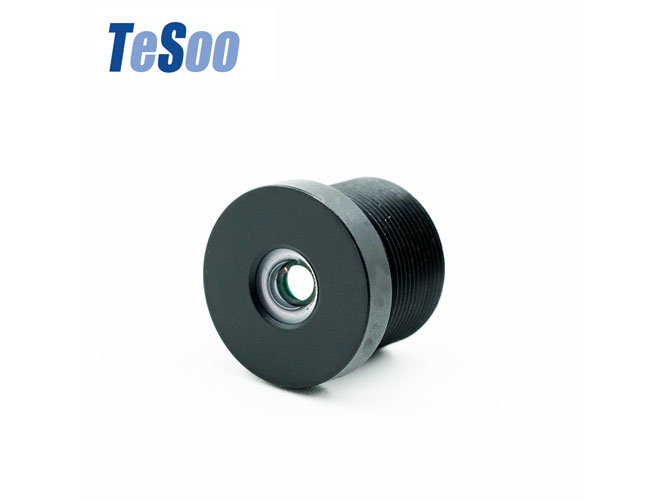

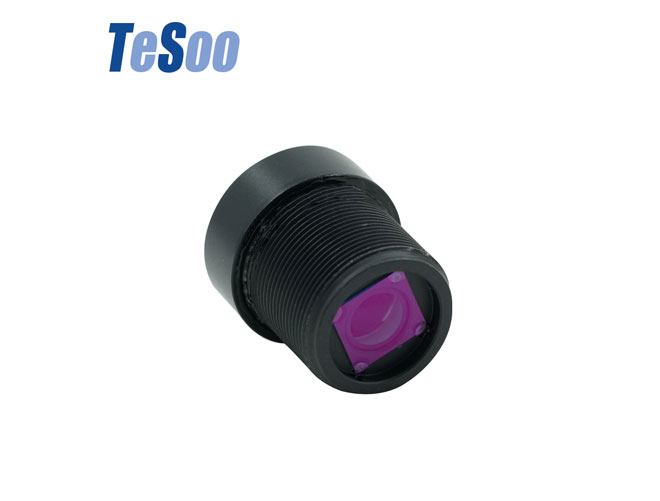

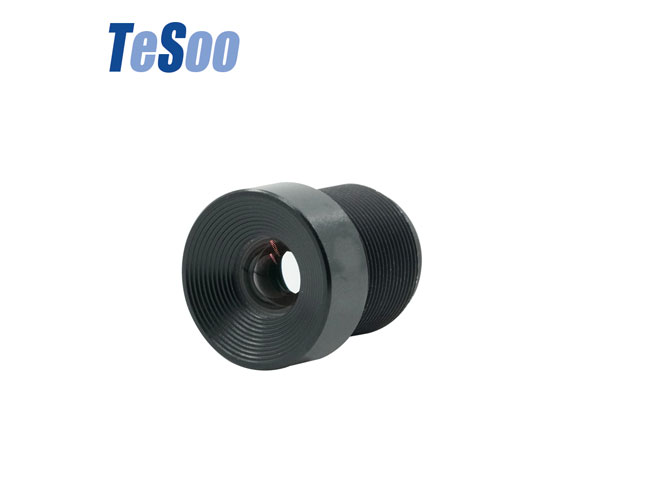

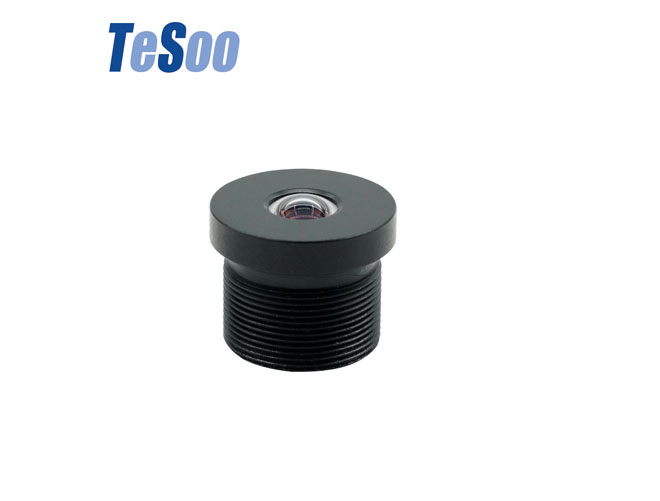

Tesoo ADAS Advanced Driver Assistance System Lens

Tesoo lenses car generally meet the characteristics of wide-angle, high relative illumination, high light, and other features. The sensor size of lens for adas in cars is 1/2'' to 1/3''. TTL: 15.02-23mm. EFL: 4.0-  16.0mm. F.NO: 2.0/2.2/2.4/2.8/4.8. Get lens for adas system in cars quote now!

Buy Tesoo ADAS Advanced Driver Assistance System Lens   >

Sliding

02


Advanced Driver Assistance Systems
Adas System in Cars
Adas Driving
Adas in Cars
PART No.TS-1817I-A00
TTL16.73mm
EFL5.60mm
F/NO2.4
MBFL5.06mm
SENSOR  SIZE1/3''1/2.7''
FOVFOV
(D)63°69°
(H)50°55°
(V)38°40°
TV-DISTORTION<-3.6%<-5%
MAX IMAGE CIRCLEφ9.7mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*11.67
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Adas
Adas System
Driver Assistance System
Lenses Car
Advanced Driver Assistance Systems
Adas System in Cars
PART No.TS-1823N-A01
TTL23mm
EFL4.0mm
F/NO2.0
MBFL5.93mm
SENSOR  SIZE1/3''1/2.7''
FOVFOV
(D)88°98°
(H)69°77°
(V)50°57°
TV-DISTORTION<-8%<-10%
MAX IMAGE CIRCLEφ10.2mm
MountM12*0.5
CONSTRUCTION All Glass +Metal
DIAMENSIONSφ14*17.07
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Adas Driving
Adas in Cars
Adas
Adas System
Driver Assistance System
PART No.TS-2022I-A00
TTL22.11mm
EFL5.60mm
F/NO2.2
MBFL5.06mm
SENSOR  SIZE1/3''1/2.7''
FOVFOV
(D)63°70°
(H)50°56°
(V)38°41°
TV-DISTORTION<-3.8%<-5%
MAX IMAGE CIRCLEφ8.70mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*17.05
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Lenses Car
Advanced Driver Assistance Systems
Adas System in Cars
Adas Driving
PART No.TS-2015E-A01
TTL15.02mm
EFL10.50mm
F/NO2.8
MBFL5.06mm
SENSOR  SIZE1/2.7''1/2''
FOVFOV
(D)35°46°
(H)28°39°
(V)21°30°
TV-DISTORTION<-0.9%<-1.4%
MAX IMAGE CIRCLEφ9.60mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*17.05
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Adas in Cars
Adas
Adas System
Driver Assistance System
Lenses Car
PART No.TS-2722G-A00
TTL22.40mm
EFL5.20mm
F/NO2.2
MBFL3.70mm
SENSOR  SIZE1/3''1/2.7''
FOVFOV
(D)65°70°
(H)51°54°
(V)38°40°
TV-DISTORTION<-7%<-9%
MAX IMAGE CIRCLEφ7.0mm
MountM12*0.5
CONSTRUCTION All Glass +Metal
DIAMENSIONSφ14*18.7
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Adas System in Cars
Adas Driving
Adas in Cars
Adas
Adas System
PART No.TS-2721F-A00
TTL21.43mm
EFL6.50mm
F/NO2.0
MBFL6.55mm
SENSOR  SIZE1/2.7''1/2.5''
FOVFOV
(D)59°64°
(H)48°51°
(V)34°40°
TV-DISTORTION<-8%<-12%
MAX IMAGE CIRCLEφ8.80mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*15.45
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Lenses Car
Advanced Driver Assistance Systems
Adas System In Cars
Adas Driving
Adas In Cars
PART No.TS-2716C-A00
TTL16mm
EFL16.0mm
F/NO4.8
MBFL2.80mm
SENSOR  SIZE1/3''1/2.7''
FOVFOV
(D)23°25°
(H)20°22°
(V)12°13°
TV-DISTORTION<-2%<-3%
MAX IMAGE CIRCLEφ7.10mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*13.2
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃
