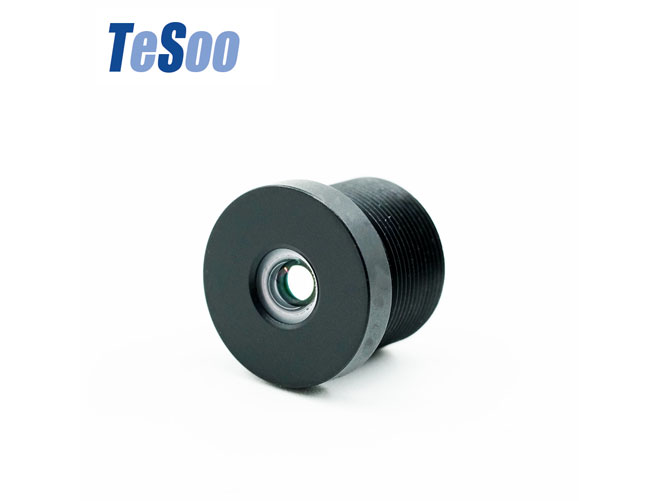

Tesoo12mm Lens

Tesoo 12mm lens can capture a detail of a distant scene and become a close-up lens. The sensor size of 12mm camera lens is 1/1.7'' to 1/3''. TTL: 15.02-50.4mm. EFL: 8-16mm. F.NO: 1.0/2.0/4.0/4.8/6.0. MBFL: 2.89-7.78mm. Get 12mm full frame lens price now!

Buy Tesoo12mm Lens   >

Sliding

02

Specifications of Tesoo12mm Lens


12mm Lens
12mm Camera Lens
12mm Full Frame Lens
12mm Lens
PART No.TS-2015E-A00
TTL15.02mm
EFL10.50mm
F/NO4.0
MBFL5.06mm
SENSOR SIZE1/2.5''1/2''
FOVFOV
(D)38°46°
(H)33°40°
(V)19°28°
TV-DISTORTION＜-1%＜-1.4%
MAX IMAGE CIRCLEφ9.60mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*17.05
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


12mm Camera Lens
12mm Full Frame Lens
Long Focal Length Lens
12mm Lens
12mm Camera Lens
PART No.TS-2723C-A00
TTL22.5mm
EFL12mm
F/NO2.0
MBFL5.6mm
SENSOR SIZE1/2.7''1/3''
FOVFOV
(D)33°27°
(H)29°23°
(V)16°13°
TV-DISTORTION＜-3.5%＜-0.5%
MAX IMAGE CIRCLEφ7mm
MountM12*0.5
CONSTRUCTION6E
DIAMENSIONSφ14*16.9
Operating temp.-20 ~ +70℃
Storage temp.-40 ~ +80℃


12mm Lens
12mm Camera Lens
12mm Camera Lens
12mm Full Frame Lens
PART No.TS-2019D-A00
TTL18.72mm
EFL10mm
F/NO6.0
MBFL6.30mm
SENSOR SIZE1/2''1/2.5''
FOVFOV
(D)42°34°
(H)36°30°
(V)25°18°
TV-DISTORTION＜-0.8%＜-0.6%
MAX IMAGE CIRCLEφ8.5mm
MountM12*0.5
CONSTRUCTION6E
DIAMENSIONSφ14*12.4
Operating temp.-20 ~ +70℃
Storage temp.-40 ~ +80℃


12mm Camera Lens
12mm Full Frame Lens
12mm Lens
12mm Camera Lens
12mm Lens
PART No.TS-2716C-A00
TTL16mm
EFL16mm
F/NO4.8
MBFL2.89mm
SENSOR SIZE1/3''1/2.5''
FOVFOV
(D)22°27°
(H)20°23°
(V)11°13°
TV-DISTORTION＜-0.1%＜-0.5%
MAX IMAGE CIRCLEφ7.60mm
MountM12*0.5
CONSTRUCTIONAll glass+Metal
DIAMENSIONSφ14*13.11
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


12mm Lens
12mm Camera Lens
12mm Camera Lens
12mm Camera Lens Tesoo
PART No.TS-1850G-A00
TTL50.4mm
EFL8mm
F/NO1.0
MBFL7.78mm
SENSOR SIZE1/1.7''
FOV
(D)65°
(H)55°
(V)28°
TV-DISTORTION＜-8.7%
MAX IMAGE CIRCLEφ8.9mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ22*42.62
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃
