Sliding

01
10.5mm Lens
10.5mm Lens
10.5mm Lens
Long Focal Length Lens

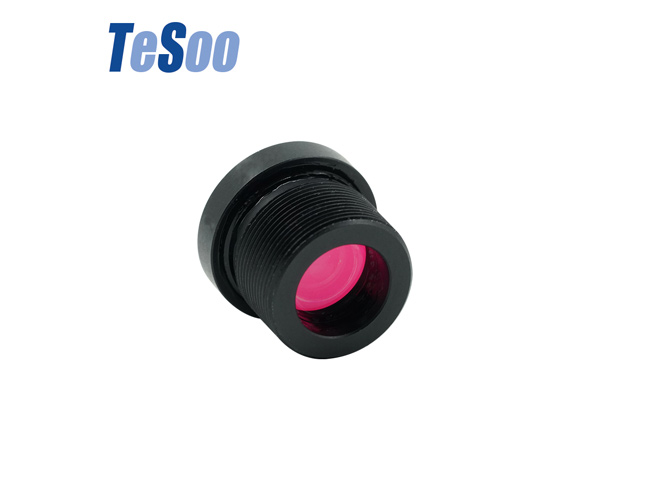

Tesoo 10.5mm Lens

Tesoo 10.5mm lens can capture a detail of a distant scene and become a close-up lens. The sensor size of 10.5mm lens is 1/2'' and 1/2.5''. TTL: 15.02mm. EFL: 10.50mm. F.NO: 4. MBFL: 5.06mm. Get 10.5mm lens price now!

Buy Tesoo 10.5mm Lens   >

Sliding

02


10.5mm Lens
10.5mm Lens
10.5mm Lens
Long Focal Length Lens
PART No.TS-2015E-A00
TTL15.02mm
EFL10.50mm
F/NO4.0
MBFL5.06mm
SENSOR  SIZE1/2.5''1/2''
FOVFOV
(D)38°46°
(H)33°40°
(V)19°28°
TV-DISTORTION＜-1%＜-1.4%
MAX IMAGE CIRCLEφ9.60mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*17.05
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Specifications of 10.5mm Lens

PART No.TS-2015E-A00
TTL15.02mm
EFL10.50mm
F/NO4.0
MBFL5.06mm
SENSOR SIZE1/2.5''1/2''
FOVFOV
(D)38°46°
(H)33°40°
(V)19°28°
TV-DISTORTION＜-1%＜-1.4%
MAX IMAGE CIRCLEφ9.60mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*17.05
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃
