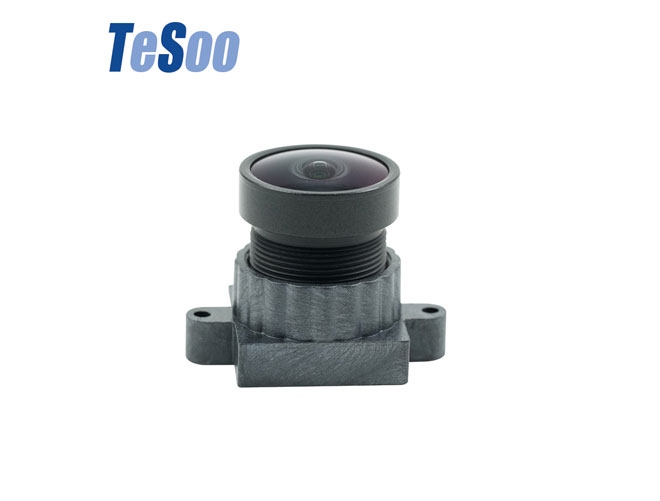

Tesoo Dash Camera Lens

Tesoo dash camera lens generally meet the characteristics of wide angle, high relative illumination, high light and other features. The sensor size of dash cam lenses is 1/2.3'' to 1/3''. TTL: 15.71-17.89mm. EFL: 2.20-3.65mm. F.NO: 2.0/2.4. MBFL: 2.16-5.06mm. Get dash automotive camera lens quote now!

Buy Tesoo Dash Camera Lens   >

Sliding

02

Specifications of Tesoo Dash Camera Lens


Dash Cam Lenses
Dash Cam 3 Lens
Dash Camera Lens
Dash Cam Lenses
Dash Cam 3 Lens
PART No.TS-2717O-A00
TTL16.8mm
EFL3.2mm
F/NOF2.0
MBFL5.06mm
SENSOR  SIZE1/2.7"
FOV
(D)152°
(H)119°
(V)60°
MAX IMAGE CIRCLEφ6.8mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*13.1
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Dash Camera Lens
Dash Cam Lenses
Dash Cam 3 Lens
Dash Camera Lens
Dash Cam Lenses
PART No.TS-2716N-A00
TTL15.71mm
EFL3.20mm
F/NOF2.0
MBFL3.13mm
SENSOR  SIZE1/2.7''
FOV
(D)146°
(H)117°
(V)60°
MAX IMAGE CIRCLEφ6.90mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*12.58
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Dash Cam 3 Lens
Dash Camera Lens
Dash Cam Lenses
Dash Cam 3 Lens
Dash Camera Lens
PART No.TS-2316M-A00
TTL15.91mm
EFL3.65mm
F/NOF2.0
MBFL3.68mm
SENSOR  SIZE1/2.3''
FOV
(D)148°
(H)112
(V)76°
MAX IMAGE CIRCLEφ8.20mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*12.23
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Dash Cam Lenses
Dash Cam 3 Lens
Dash Camera Lens
Dash Cam Lenses
Dash Cam 3 Lens
PART No.TS-2717R-A00
TTL16.60mm
EFL2.70mm
F/NOF2.4
MBFL3.86mm
SENSOR  SIZE1/3''
FOV
(D)160°
(H)132°
(V)67°
MAX IMAGE CIRCLEφ6.90mm
MountM12*0.5
CONSTRUCTIONAll Glass+Metal
DIAMENSIONSφ14*12.74
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Dash Camera Lens
Dash Cam Lenses
Dash Cam 3 Lens
Dash Camera Lens
Dash Cam Lenses
PART No.TS-2518S-A00
TTL17.89mm
EFL2.55mm
F/NOF2.4
MBFL3.55mm
SENSOR  SIZE1/2.7''
FOV
(D)160°
(H)136°
(V)74°
MAX IMAGE CIRCLEφ7.70mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*14.34
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Dash Cam 3 Lens
Dash Camera Lens
Dash Cam Lenses
Dash Cam 3 Lens
PART No.TS-2818S-A00
TTL16.64mm
EFL2.20mm
F/NOF2.0
MBFL2.16mm
1/3''

FOV
(D)170°
(H)148°
(V)80°
MAX IMAGE CIRCLEφ6.90mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*14.48
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃
