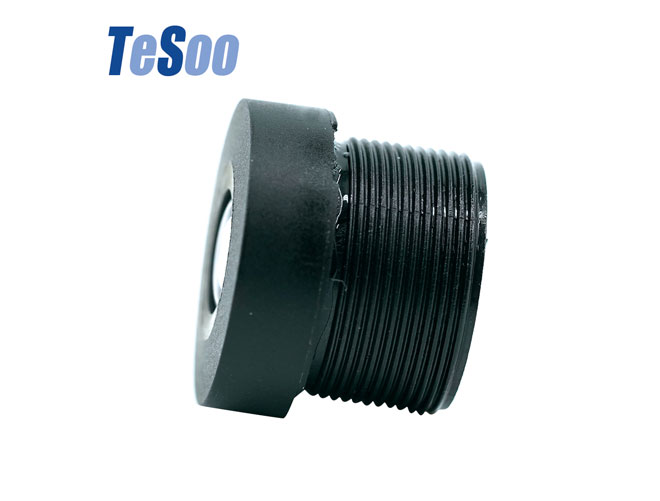

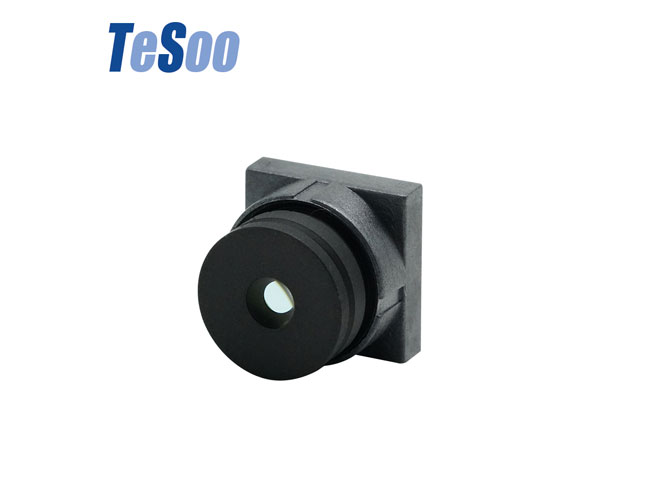

Tesoo Vision Lens

Tesoo machine vision lens is one of our most popular industrial lenses. The sensor size of machine vision lens is  1/2" to 1/3'". TTL: 7.49-16mm. EFL: 4.6-16mm. F.NO:  2.6/4.0/4.8. MBFL: 1.48-5.06mm. Get machine vision industrial camera lens price now!

Buy Tesoo Vision Lens   >

Sliding

02

Specifications of Tesoo Vision Lens


Vision Lens
Machine Vision Lens
Vision Lens
Machine Vision Lens
PART No.TS-2709G-A08
TTL8.47mm
EFL4.60mm
F/NO2.6
MBFL1.48mm
SENSOR  SIZE1/3''1/2.7''
FOVFOV
(D)68°72°
(H)59°66°
(V)38°39°
TV-DISTORTION＜-1.5%＜-2%
MAX IMAGE CIRCLEφ6.85mm
MountM9*0.35
CONSTRUCTION3G1MG+Metal
DIAMENSIONSφ9*6.99
Operating temp.-30 ~ +80℃
Storage temp.-40 ~ +85℃


Vision Lens
Machine Vision Lens
Vision Lens
Machine Vision Lens
Vision Lens
PART No.TS-2508H-A09
TTL7.49mm
EFL4.80mm
F/NO2.6
MBFL1.74mm
SENSOR  SIZE1/3''1/2.7''
FOVFOV
(D)72°77°
(H)62°67°
(V)36°39°
TV-DISTORTION＜-1%＜-1%
MAX IMAGE CIRCLEφ8.2mm
MountM9*0.35
CONSTRUCTION2G2P +Metal
DIAMENSIONSφ9*5.75
Operating temp.-20 ~ +75℃
Storage temp.-25 ~ +80℃


Machine Vision Lens
Vision Lens
Machine Vision Lens
Vision Lens
PART No.TS-2015E-A00
TTL15.02mm
EFL10.50mm
F/NO4.0
MBFL5.06mm
SENSOR  SIZE1/2.5''1/2''
FOVFOV
(D)38°46°
(H)33°40°
(V)19°28°
TV-DISTORTION＜-1%＜-1.4%
MAX IMAGE CIRCLEφ9.60mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*17.05
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Machine Vision Lens
Vision Lens
Machine Vision Lens
Vision Lens
Machine Vision Lens
PART No.TS-2716C-A00
TTL16mm
EFL16mm
F/NO4.8
MBFL2.89mm
SENSOR  SIZE1/3''1/2.5''
FOVFOV
(D)22°27°
(H)20°23°
(V)11°13°
TV-DISTORTION＜-0.1%＜-0.5%
MAX IMAGE CIRCLEφ7.60mm
MountM12*0.5
CONSTRUCTIONAll glass+Metal
DIAMENSIONSφ14*13.11
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Specifications of Vision Lens

PART No.F/No.EFLSensor SizeResolutionMOUNTTTLView angleInfrared DefocusApplication
TS-1265M-A00F1.02.8mm1/1.2"8MPC65.21±0.3131.1/112.2/61.2Infrared ConfocalITS lens
TS-1266L-A00F1.04mm1/1.2"8MPC65.78±0.3106/90.7/49.4Infrared ConfocalITS lens
TS-F1116-C12F1.412mm1.1" 1"8MP-16MPC95.73±0.374°/62°/46°Infrared ConfocalITS lens
TS-F1116-C16F1.416mm1.1" 1"8MP-16MPC96.42±0.361.3°/50.3°/37°Infrared ConfocalITS lens
TS-F1116-C25F1.425mm1.1" 1"8MP-16MPC96±0.341°/33°/24°Infrared ConfocalITS lens
TS-F1116-C35F1.435mm1.1" 1"8MP-16MPC96.71±0.329.3°/23.5°/17°Infrared ConfocalITS lens
TS-F1116-C50F1.250mm1.1" 1"8MP-16MPC95.45±0.320.1°/16.2°/11.7°Infrared ConfocalITS lens
TS-F1116-C70F1.470mm1.1" 1"8MP-16MPC110.55±0.314.2°/11.4°/8.3°Infrared ConfocalITS lens


PART No.F/No.EFLSensor SizeResolutionMOUNTRI.DistortionInfrared DefocusApplication
TS-D1225-C203.5~11201.2"25MPC>50%<0.19%150~INF.Industrial Lens
TS-D1225-C252.8~16251.2"25MPC>50%<0.24%150~INF.Industrial Lens
TS-D1225-C352.8~16351.2"25MPC>50%<0.41%200~INF.Industrial Lens
TS-D1225-C502.8~16501.2"25MPC>50%<0.41%200~INF.Industrial Lens
TS-D2310-C252.4~16252/3"10MPC>50%<0.56%200~INF.Industrial Lens
TS-D2310-C352.4~16352/3"10MPC>50%<0.51%200~INF.Industrial Lens
TS-D2310-C502.4~16502/3"10MPC>50%<0.27%200~INF.Industrial Lens
TS-D1120-C082.4~1681.1"20MPC>65%<1%100~INF.Industrial Lens
TS-D1120-C122.4~16121.1"20MPC>70%<0.5%100~INF.Industrial Lens
TS-D1120-C162.4~16161.1"20MPC>65%<0.3%100~INF.Industrial Lens
TS-D1120-C252.4~16251.1"20MPC>70%<0.2%100~INF.Industrial Lens
TS-D1120-C352.4~16351.1"20MPC>70%<0.1%200~INF.Industrial Lens
TS-D1120-C502.4~16501.1"20MPC>70%<0.1%300~INF.Industrial Lens
TS-D2308-C082.8~1682/3"8MPC>50%<0.11%100~INF.Industrial Lens
TS-D2308-C122.8~16122/3"8MPC>50%<0.12%100~INF.Industrial Lens
TS-D2308-C162.8~16162/3"8MPC>50%<0.04%100~INF.Industrial Lens
TS-D2308-C252.8~16252/3"8MPC>50%<0.03%200~INF.Industrial Lens
TS-D2308-C352.8~16352/3"8MPC>50%<0.03%200~INF.Industrial Lens
TS-D2308-C502.8~16502/3"8MPC>50%<0.02%250~INF.Industrial Lens
TS-D2305-C081.6~1682/3"5MPC>70%<0.3%100~1500Industrial Lens
TS-D2305-C121.6~16122/3"5MPC>70%<0.15%100~1500Industrial Lens
TS-D2305-C161.6~16162/3"5MPC>70%<0.1%100~1500Industrial Lens
TS-D2305-C251.6~16252/3"5MPC>76%<0.1%100~1500Industrial Lens
TS-D2305-C351.6~16352/3"5MPC>76%<0.15%150~1500Industrial Lens
TS-D2305-C502~16502/3"5MPC>76%<0.015%300~INF.Industrial Lens
