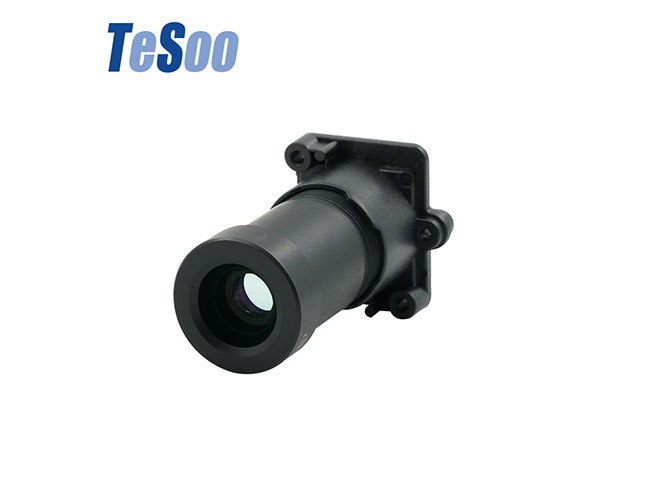

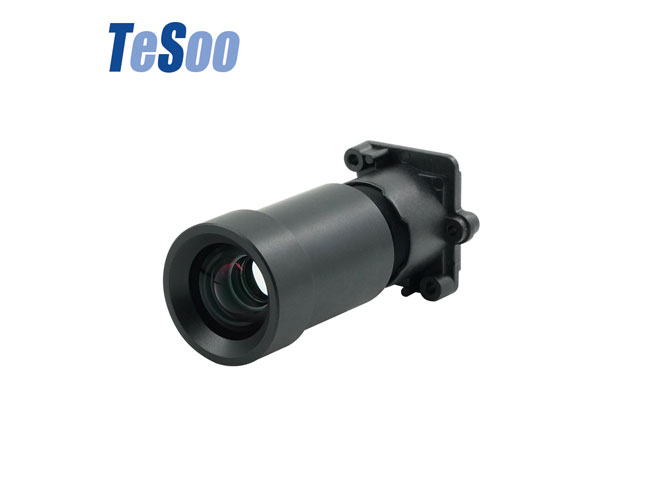

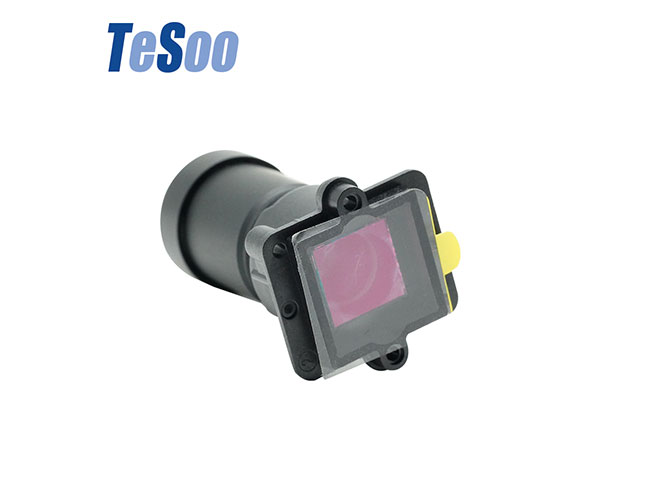

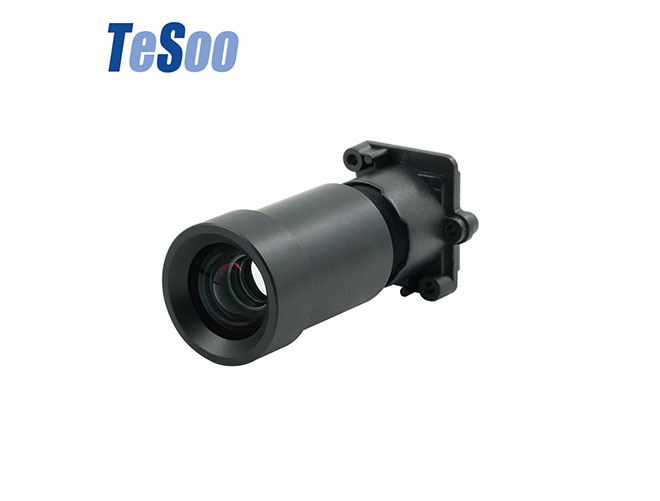

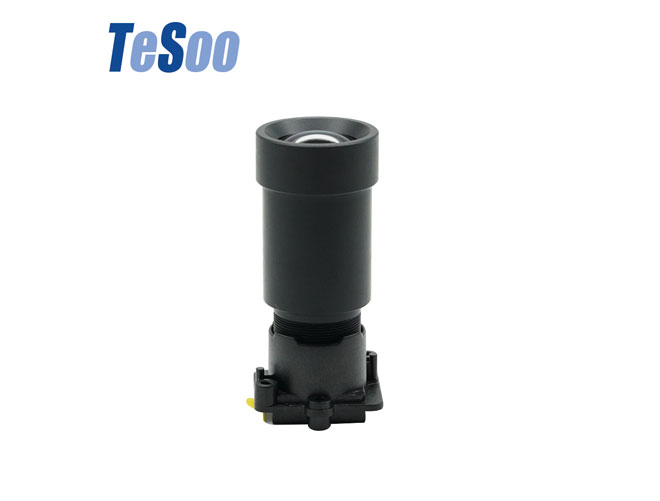

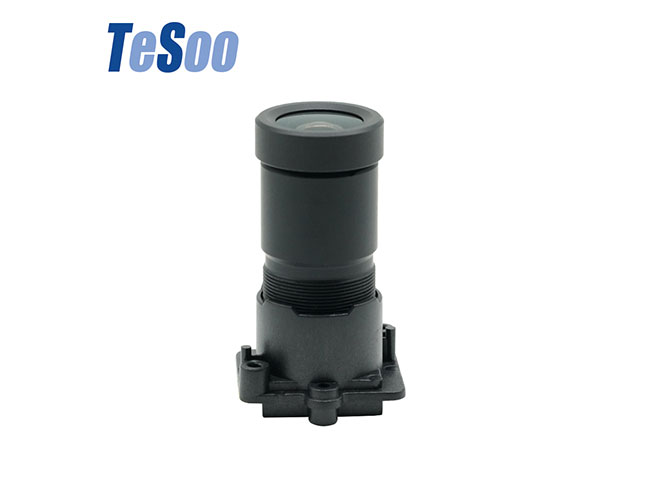

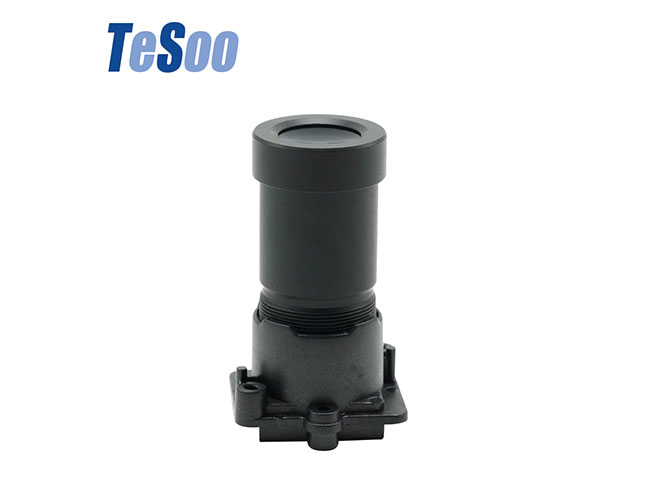

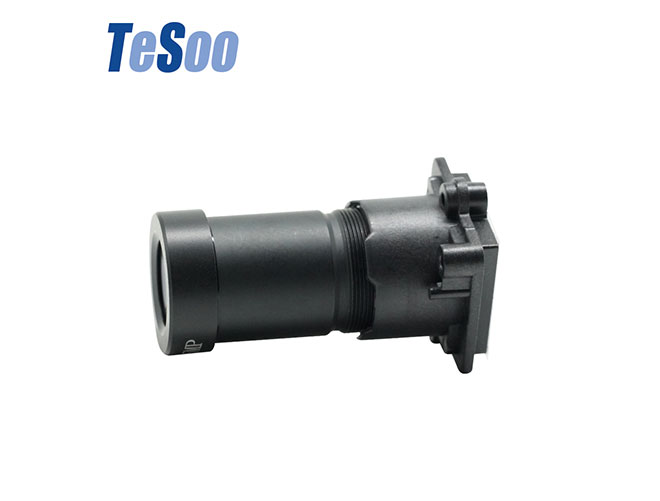

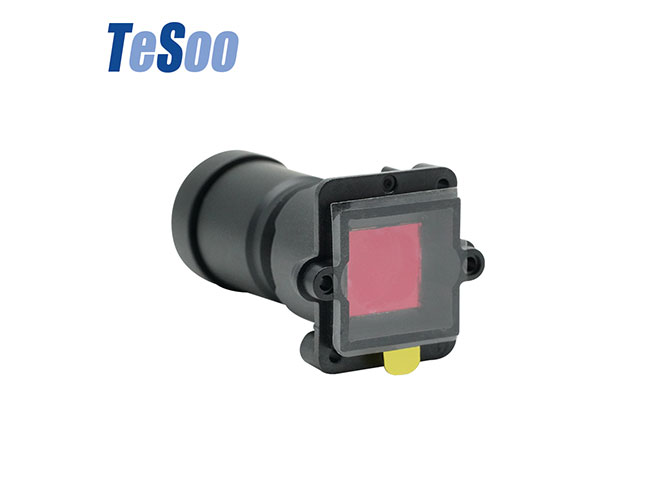

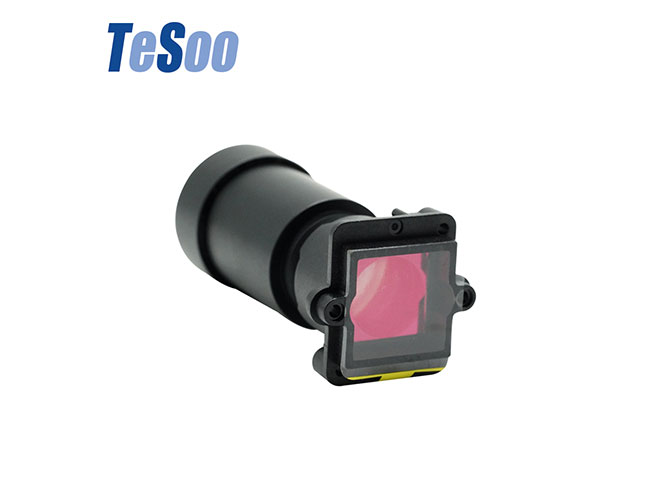

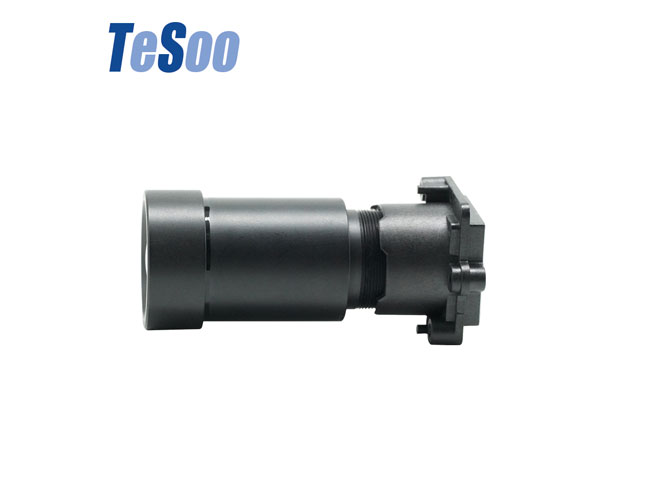

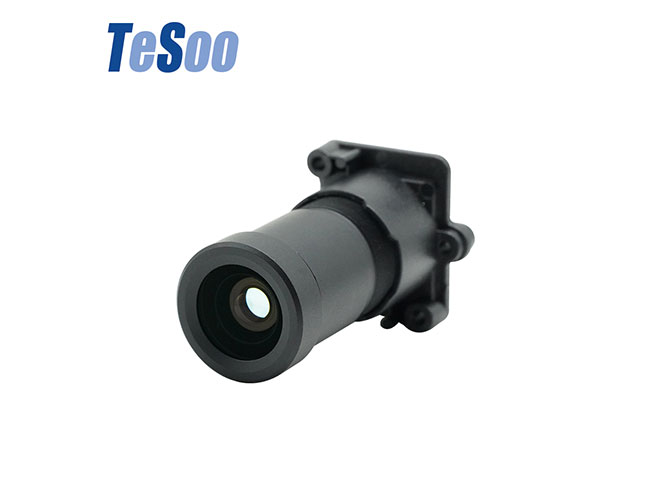

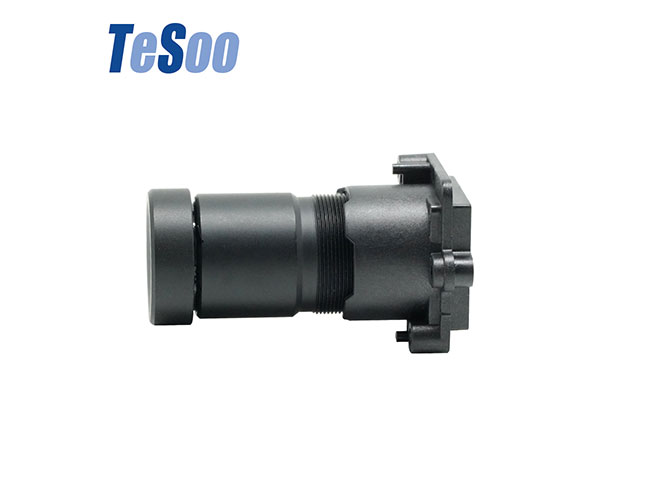

Tesoo M16 Lens

Tesoo M16 lens can still capture clear images under the condition of low illumination. The sensor size of M16 lens is 1/1.7'' and 1/1.8''. TTL: 30-50.4mm. EFL: 4-8mm. F.NO: 0.9/1.0. MBFL: 5.24-7.78mm. Get M16 lens price now!

Buy Tesoo M16 Lens   >

Sliding

02

Specifications of Tesoo M16 Lens


M16 Lens
M16 Lens
M16 Lens
M16 Lens
PART No.TS-1850G-A00
TTL50.4mm
EFL8mm
F/NO1.0
MBFL7.78mm
SENSOR SIZE1/1.7''
FOV
(D)65°
(H)55°
(V)28°
TV-DISTORTION＜-8.7%
MAX IMAGE CIRCLEφ8.9mm
MountM16*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ22*42.62
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


M16 Lens
M16 Lens
M16 Lens
M16 Lens
PART No.TS-1832K-A00
TTL31.9mm
EFL4mm
F/NO1.0
MBFL5.33mm
SENSOR SIZE1/1.8''
FOV
(D)108°
(H)92°
(V)49°
TV-DISTORTION＜-12.9%
MAX IMAGE CIRCLEφ9.2mm
MountM16*0.5
RESOLUTION4K/8MP
DIAMENSIONSφ18*26.57
Operating temp.-20 ~ +70℃
Storage temp.-25 ~ +80℃


M16 Lens
M16 Lens
M16 Lens
M16 Lens
PART No.TS-1849L-A00
TTL49mm
EFL5mm
F/NO0.9
MBFL5.35mm
SENSOR SIZE1/1.8''
FOV
(D)118°
(H)88°
(V)63°
TV-DISTORTION＜-42%
MAX IMAGE CIRCLEφ8.9mm
MountM16*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ22*43.65
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


M16 Lens
M16 Lens
M16 Lens
M16 Lens
PART No.TS-1830G-A00
TTL30mm
EFL6mm
F/NO1.0
MBFL5.24mm
SENSOR SIZE1/1.8''
FOV
(D)69°
(H)60°
(V)34°
TV-DISTORTION＜-3%
MAX IMAGE CIRCLEφ9.2mm
MountM16*0.5
RESOLUTION4K/8MP
DIAMENSIONSφ18*24.77
Operating temp.-20 ~ +70℃
Storage temp.-25 ~ +80℃
