Sliding

01
8mm Camera Lens
Long Focal Length Lens
Long Focal Length Lens
8mm Lens
8mm Camera Lens
Long Focal Length Lens
8mm Lens
8mm Camera Lens

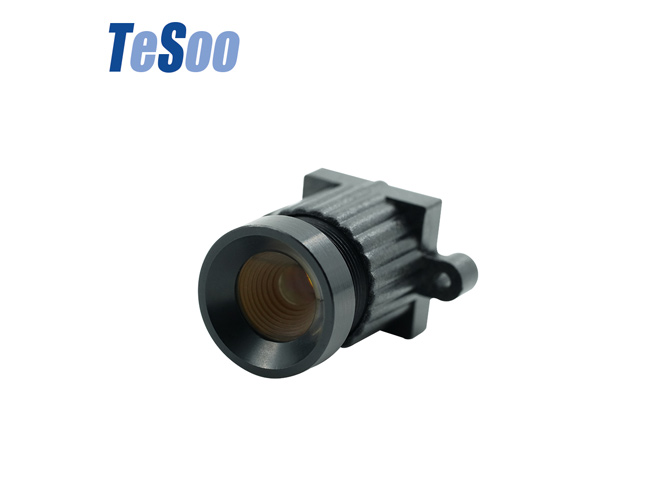

Tesoo 8mm Lens

Tesoo 8mm lens can capture a detail of a distant scene and become a close-up lens. The sensor size of 8mm lens is 1/2.7'' and 1/3''. TTL: 7.49/22.89mm. EFL: 8.0mm. F.NO: 2.0/2.6. MBFL: 1.74/7.12mm. Get 8mm camera lens price now!

Buy Tesoo 8mm Lens   >

Sliding

02

Specifications of Tesoo 8mm Lens


8mm Camera Lens
Long Focal Length Lens
Long Focal Length Lens
8mm Lens
PART No.TS-2723D-A00
TTL22.89mm
EFL8.0mm
F/NO2.0
MBFL7.12mm
SENSOR SIZE1/3''1/2.7''
FOVFOV
(D)41°44°
(H)38°40°
(V)22°23°
TV-DISTORTION＜-2.2%＜-3%
MAX IMAGE CIRCLEφ6.90mm
MountM12*0.5
CONSTRUCTIONAll glass+Metal
DIAMENSIONSφ14*15.77
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


8mm Camera Lens
8mm Lens
Long Focal Length Lens
8mm Camera Lens
PART No.TS-3020D-A00
TTL7.49mm
EFL8.0mm
F/NO2.6
MBFL1.74mm
SENSOR SIZE1/3''1/2.7''
FOVFOV
(D)42°46°
(H)38°41°
(V)22°23°
TV-DISTORTION＜-3%＜-3.5%
MAX IMAGE CIRCLEφ7.0mm
MountM12*0.5
CONSTRUCTIONAll glass +Metal
DIAMENSIONSφ14*14.1
Operating temp.-30 ~ +75℃
Storage temp.-40 ~ +80℃
