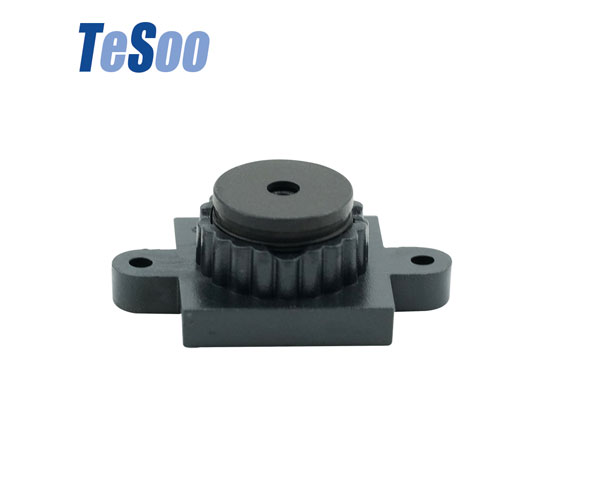

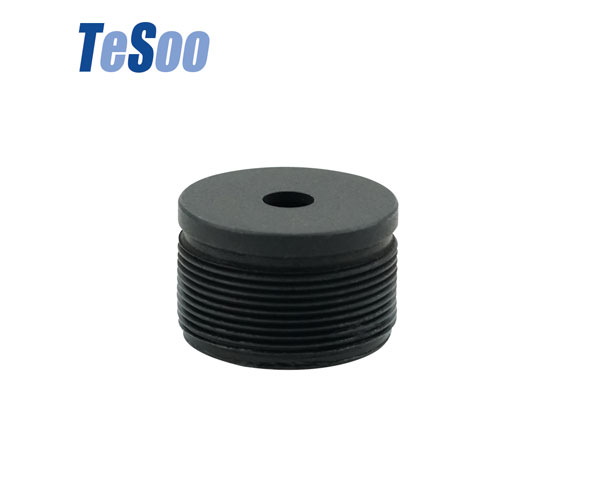

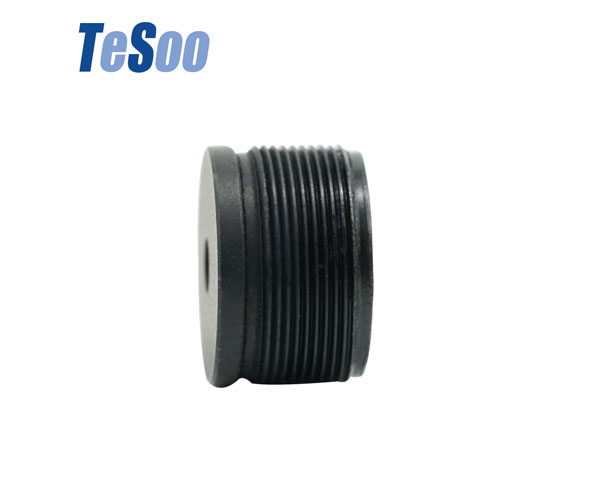

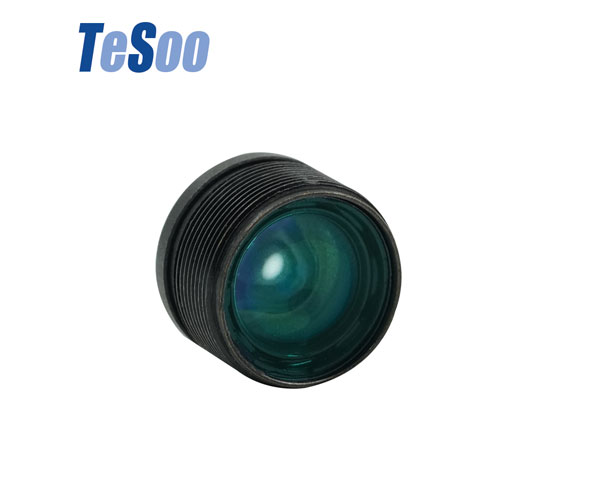

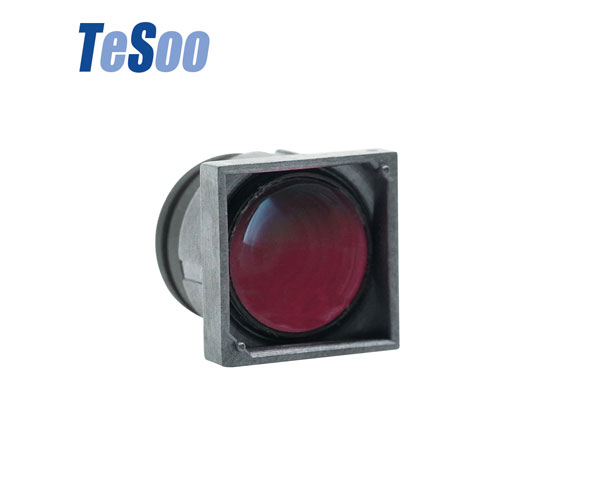

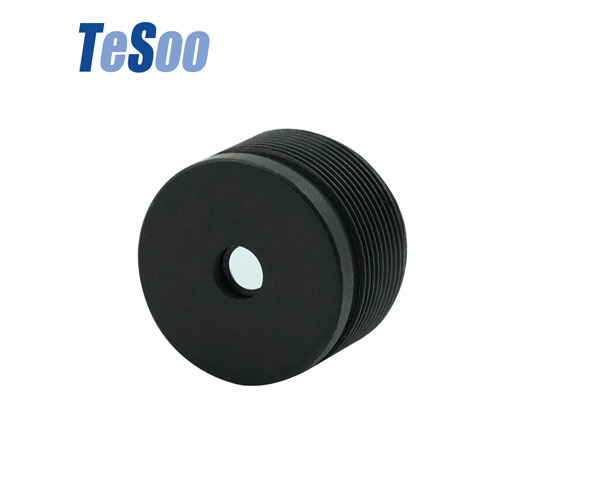

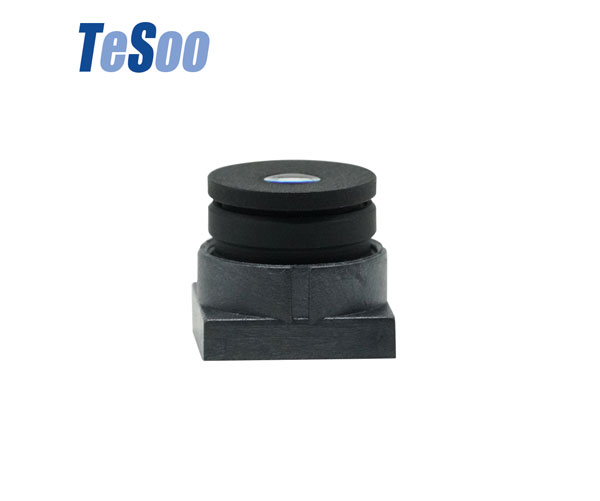

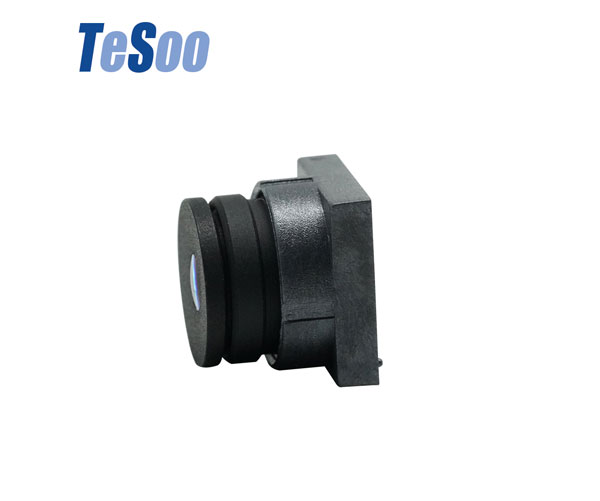

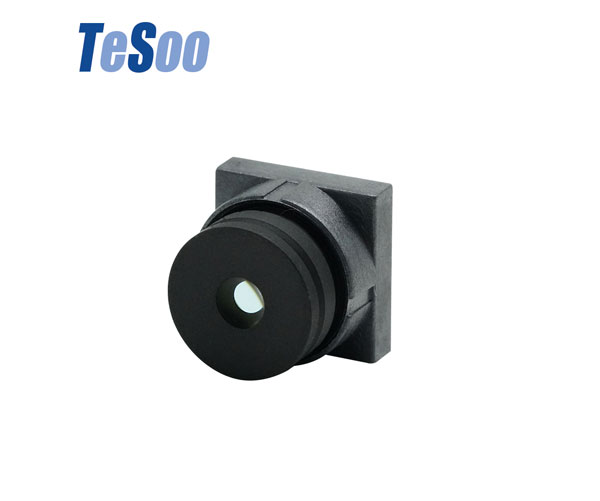

Tesoo Surgical Mini Lenses

Tesoo surgical lenses is a single thin and flat structure with multiple waveguides (looks like tiny pillars) arranged in a specific pattern. The sensor size of surgical lenses is 1/2.7'' to 1/9''. TTL: 2.7-8.47mm. EFL: 1.03-4.80mm. F.NO: 2.6/4.0/5.7. MBFL: 0.55-1.99mm. Get surgical lenses price now!

Buy Tesoo Surgical Mini Lenses   >

Sliding

02

Specifications of Tesoo Surgical Mini Lenses


Surgical Lenses
Surgical Lenses
Surgical Lenses
Surgical Lenses
PART No.TS-2709G-A08
TTL8.47mm
EFL4.60mm
F/NO2.6
MBFL1.48mm
SENSOR  SIZE1/3''1/2.7''
FOVFOV
(D)68°72°
(H)59°66°
(V)38°39°
TV-DISTORTION<-1.5%<-2%
MAX IMAGE CIRCLEφ6.85mm
MountM9*0.35
CONSTRUCTION3G1MG+Metal
DIAMENSIONSφ9*6.99
Operating temp.-30 ~ +80℃
Storage temp.-40 ~ +85℃


Surgical Lenses
Surgical Lenses
Surgical Lenses
Surgical Lenses
Surgical Lenses
PART No.TS-2508H-A09
TTL7.49mm
EFL4.80mm
F/NO2.6
MBFL1.74mm
SENSOR  SIZE1/3''1/2.7''
FOVFOV
(D)72°77°
(H)62°67°
(V)36°39°
TV-DISTORTION<-1%<-1%
MAX IMAGE CIRCLEφ8.2mm
MountM9*0.35
CONSTRUCTION2G2P +Metal
DIAMENSIONSφ9*5.75
Operating temp.-20 ~ +75℃
Storage temp.-25 ~ +80℃


Surgical Lenses
Surgical Lenses
Surgical Lenses
Surgical Lenses
Surgical Lenses
PART No.TS-4006E-AM6
TTL5.99mm
EFL4.63mm
F/NO5.7
MBFL1.99mm
SENSOR  SIZE1/4''
FOV
(D)50°
(H)44°
(V)26°
TV-DISTORTION<-0.08%
MAX IMAGE CIRCLEφ4.8mm
MountM5.8*0.235
CONSTRUCTION4E +Plastic
DIAMENSIONSφ3*4
Operating temp.-20 ~ +75℃
Storage temp.-25 ~ +80℃


Surgical Lenses
Surgical Lenses
Surgical Lenses
Surgical Lenses
Surgical Lenses
PART No.TS-9002M-AM3
TTL2.7mm
EFL1.03mm
F/NO4.0
MBFL0.55mm
SENSOR  SIZE1/9''
FOV
(D)129°
(H)99°
(V)50°
TV-DISTORTION<-25%
MAX IMAGE CIRCLEφ2.1mm
MountM2.6*0.25
CONSTRUCTION4E+Plastic
DIAMENSIONSφ2*2.1
Operating temp.-20 ~ +75℃
Storage temp.-25 ~ +80℃
