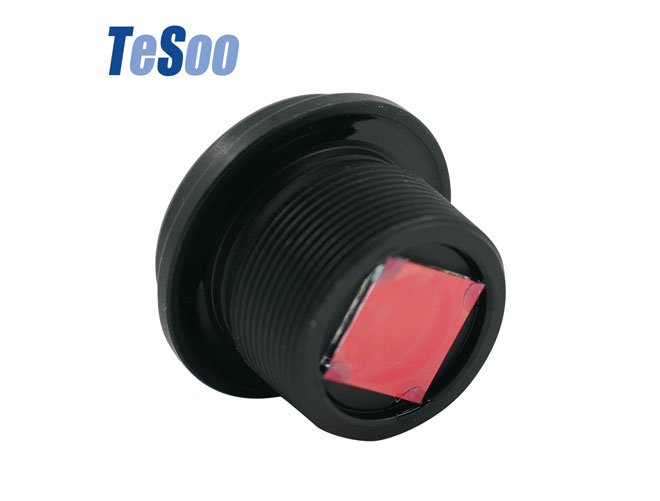

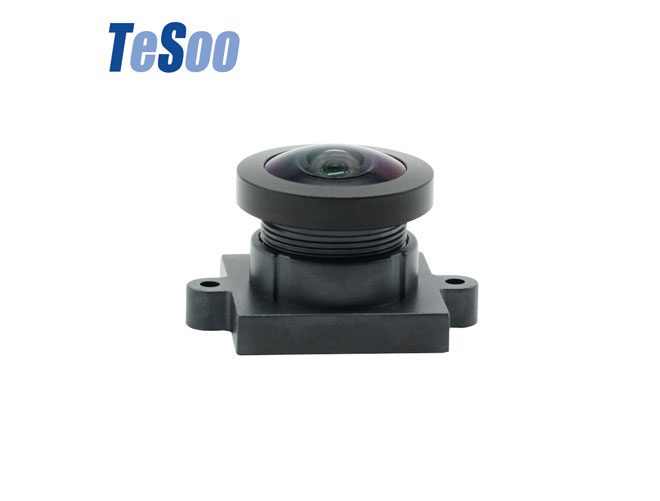

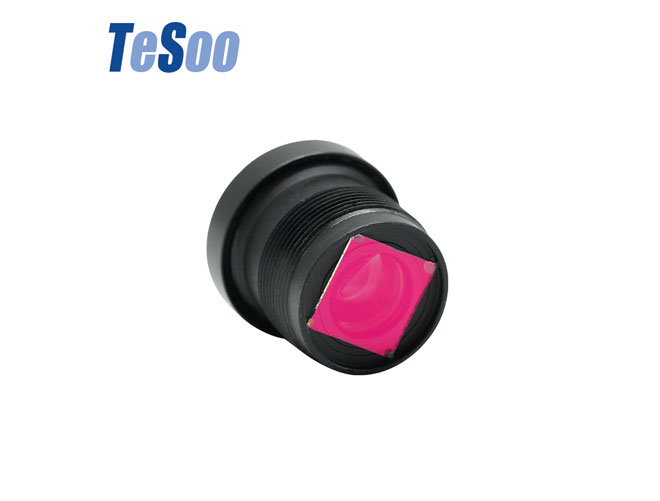

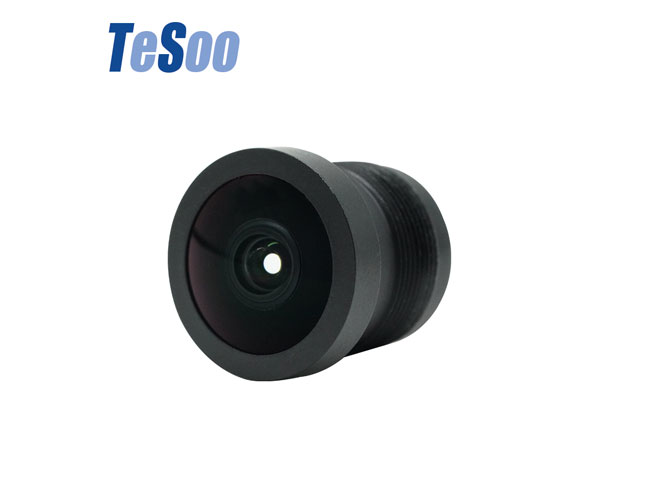

Tesoo Short Focal Length Lens

Tesoo short focal length lens adds extra abstraction and dynamism to images, the previous mundane scenes thus being elevated. The sensor size of short focal length lens is 1/2.3'' to 1/4''. TTL: 13-16.64mm. EFL: 0.83-2.20mm. F.NO: 1.8/2.0/2.4. MBFL: 1.69-2.63mm. Get short focal cheap fisheye lens price now!

Buy Tesoo Short Focal Length Lens   >

Sliding

02

Specifications of Tesoo Short Focal Length Lens


Short Focal Lens
Short Focal Length Lens
Short Focal Lens
Short Focal Length Lens
Short Focal Lens
PART No.TS-4013T-A00
TTL14.11mm
EFL0.83mm
F/NO2.0
MBFL1.69mm
SENSOR SIZE1/4''1/3''
FOVFOV
(D)195°195°
(H)195°195°
(V)158°190°
DISTORTION(F-θ)＜30%＜30%
MAX IMAGE CIRCLEφ3.68mm
MountM12*0.5
CONSTRUCTION2G4P+Plastic
IP RatingIPX7 or IP69K
DIAMENSIONSφ14/16*12.42
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Short Focal Length Lens
Short Focal Lens
Short Focal Length Lens
Short Focal Lens
Short Focal Length Lens
PART No.TS-4013T-A01
TTL14.11mm
EFL0.83mm
F/NO2.0
MBFL1.69mm
SENSOR SIZE1/4''1/3''
FOVFOV
(D)220°220°
(H)210°220°
(V)158°190°
DISTORTION(F-θ)＜27%＜27%
MAX IMAGE CIRCLEφ4.0mm
MountM12*0.5
CONSTRUCTION2G4P+Plastic
IP RatingIPX7 or IP69K
DIAMENSIONSφ14/16*12.42
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Short Focal Lens
Short Focal Length Lens
Short Focal Lens
Short Focal Length Lens
Short Focal Lens
PART No.TS-3013U-A00
TTL13mm
EFL1.40mm
F/NO1.8
MBFL2.10mm
SENSOR SIZE1/3''1/2.7''
FOVFOV
(D)210°210°
(H)210°210°
(V)130°150°
DISTORTION(F-θ)＜-20%＜-20%
MAX IMAGE CIRCLEφ4.40mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
IP RatingIPX7 or IP69K
DIAMENSIONSφ14/16*10.9
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Short Focal Length Lens
Short Focal Lens
Short Focal Length Lens
Short Focal Lens
PART No.TS-2913U-A00
TTL13.2mm
EFL1.35mm
F/NO2.0
MBFL2.20mm
SENSOR SIZE1/2.9''1/2.7''
FOVFOV
(D)215°215°
(H)215°215°
(V)130°140°
DISTORTION(F-θ)＜-20%＜-20%
MAX IMAGE CIRCLEφ4.70mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
IP RatingIPX7 or IP69K
DIAMENSIONSφ14/16*11
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Short Focal Length Lens
Short Focal Lens
Short Focal Length Lens
Short Focal Lens
PART No.TS-2818S-A02
TTL16.64mm
EFL2.20mm
F/NO2.0
MBFL2.16mm
SENSOR SIZE1/2.7''1/2.3''
FOVFOV
(D)188°200°
(H)160°176°
(V)85°130°
DISTORTION(F-θ)＜-9.8%＜-11%
MAX IMAGE CIRCLEφ6.90mm
MountM12*0.5
CONSTRUCTIONAll Glass+Metal
IP RatingIPX7 or IP69K
DIAMENSIONSφ14/16*14.48
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Short Focal Length Lens
Short Focal Lens
Short Focal Length Lens
Short Focal Lens
Short Focal Length Lens
PART No.TS-2816T-A01
TTL15.89mm
EFL1.83mm
F/NO2.4
MBFL2.63mm
SENSOR SIZE1/2.7''1/2.3''
FOVFOV
(D)212°220°
(H)180°198°
(V)102°150°
DISTORTION(F-θ)＜-0.6%＜-1%
MAX IMAGE CIRCLEφ6.80mm
MountM12*0.5
CONSTRUCTIONAll Glass+Metal
IP RatingIPX7 or IP69K
DIAMENSIONSφ14/16*13.26
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Short Focal Length Lens
Short Focal Lens
Short Focal Length Lens
Short Focal Lens
Short Focal Length Lens
PART No.TS-2015T-A00
TTL14.8mm
EFL1.70mm
F/NO2.0
MBFL2.10mm
SENSOR SIZE1/2.7''1/2.3''
FOVFOV
(D)200°200°
(H)190°200°
(V)100°150°
DISTORTION(F-θ)＜-20%＜-20%
MAX IMAGE CIRCLEφ5.90mm
MountM12*0.5
CONSTRUCTION2G4P+Metal
IP RatingIPX7 or IP69K
DIAMENSIONSφ14/16*13.26
Operating temp.-20 ~ +75℃
Storage temp.-25 ~ +80℃
