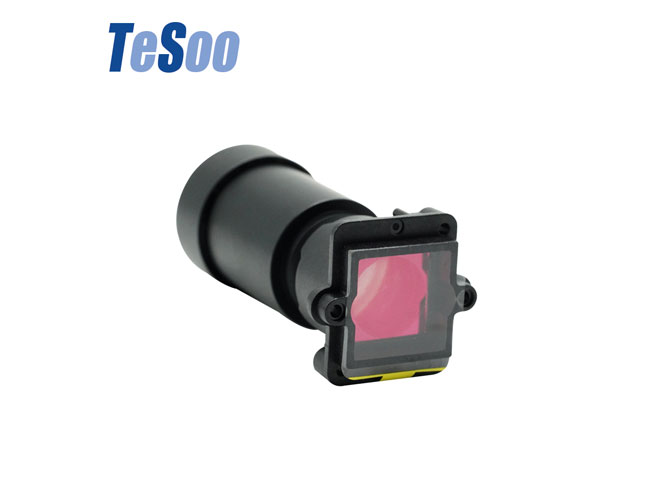

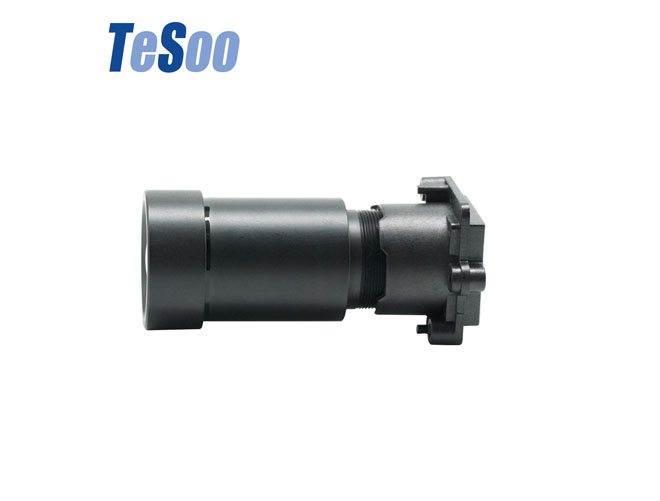

Tesoo 8.5mm M12 Lens

Tesoo 8.5 mm lens can increase the C port so that you can connect the M12 interface camera to the driving recorder. The sensor size of 8.5 mm lens is 1/1.7''and 1/3''. TTL: 7.49-65.1mm. EFL: 7.4-10.50mm. F.NO: 1.0/2.0/2.6/4.0/6.0. MBFL: 1.74-7.78mm. Get 8.5mm lens price now!

Buy Tesoo 8.5mm M12 Lens   >

Sliding

02

Specifications of Tesoo 8.5mm M12 Lens


8.5 Mm Lens
8.5mm Lens
8.5 Mm Lens
8.5mm Lens
PART No.TS-1850G-A00
TTL50.4mm
EFL8.0mm
F/NO1.0
MBFL7.78mm
SENSOR SIZE1/1.7''
FOV
(D)65°
(H)55°
(V)28°
TV-DISTORTION＜-8.7%
MAX IMAGE CIRCLEφ8.9mm
MountM16*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ22*42.62
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃



8.5mm Lens
8.5 Mm Lens
8.5mm Lens
8.5 Mm Lens
8.5mm Lens
PART No.TS-2723D-A00
TTL22.89mm
EFL8.0mm
F/NO2.0
MBFL7.12mm
SENSOR SIZE1/3''1/2.7''
FOVFOV
(D)41°44°
(H)38°40°
(V)22°23°
TV-DISTORTION＜-2.2%＜-3%
MAX IMAGE CIRCLEφ6.90mm
MountM12*0.5
CONSTRUCTIONAll glass+Metal
DIAMENSIONSφ14*15.77
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


8.5 Mm Lens
8.5mm Lens
8.5mm Lens
8.5mm Lens
PART No.TS-2019D-A00
TTL18.72mm
EFL10mm
F/NO6.0
MBFL6.30mm
SENSOR SIZE1/2''1/2.5''
FOVFOV
(D)42°34°
(H)36°30°
(V)25°18°
TV-DISTORTION＜-0.8%＜-0.6%
MAX IMAGE CIRCLEφ8.5mm
MountM12*0.5
CONSTRUCTION6E
DIAMENSIONSφ14*12.4
Operating temp.-20 ~ +70℃
Storage temp.-40 ~ +80℃


PART No.TS-1266L-A00
TTL65.1mm
EFL7.4mm
F/NO1.0
MBFL6.69mm
SENSOR SIZE1/1.2''
FOV
(D)106°
(H)91°
(V)49°
TV-DISTORTION＜-11.5%
MAX IMAGE CIRCLEφ12.8mm
MountM22/C
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ30*58.41
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


8.5mm Lens
8.5 Mm Lens
8.5mm Lens
8.5 Mm Lens
PART No.TS-3020D-A00
TTL7.49mm
EFL8.0mm
F/NO2.6
MBFL1.74mm
SENSOR SIZE1/3''1/2.7''
FOVFOV
(D)42°46°
(H)38°41°
(V)22°23°
TV-DISTORTION＜-3%＜-3.5%
MAX IMAGE CIRCLEφ7.0mm
MountM12*0.5
CONSTRUCTIONAll glass +Metal
DIAMENSIONSφ14*14.1
Operating temp.-30 ~ +75℃
Storage temp.-40 ~ +80℃


8.5mm Lens
8.5 Mm Lens
8.5mm Lens
8.5 Mm Lens
PART No.TS-2015E-A00
TTL15.02mm
EFL10.50mm
F/NO4.0
MBFL5.06mm
SENSOR SIZE1/2.5''1/2''
FOVFOV
(D)38°46°
(H)33°40°
(V)19°28°
TV-DISTORTION＜-1%＜-1.4%
MAX IMAGE CIRCLEφ9.60mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*17.05
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃
