Sliding

01
Pinhole Camera Lens
M12 Pinhole Lens
Pinhole Lens
Pinhole Camera Lens
M12 Pinhole Lens
Pinhole Lens
Pinhole Camera Lens
M12 Pinhole Lens
Pinhole Lens
Pinhole Camera Lens
M12 Pinhole Lens

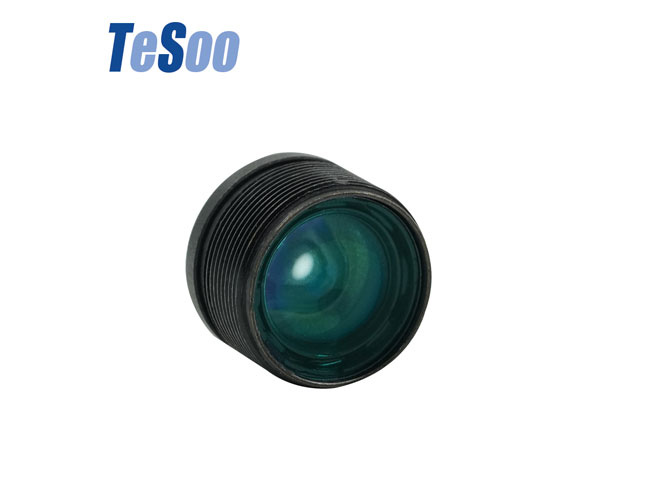

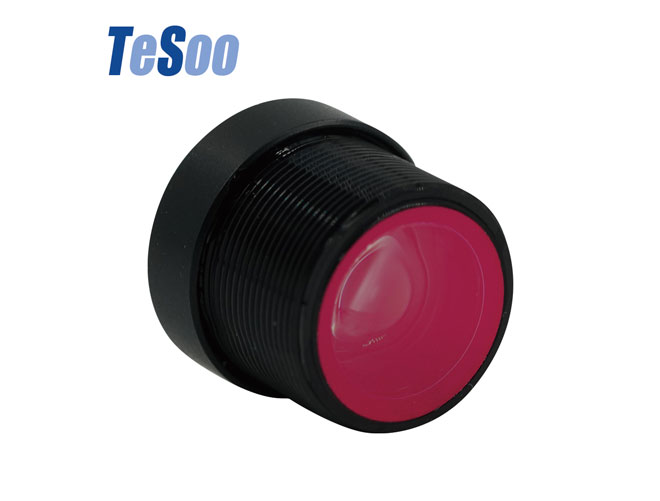

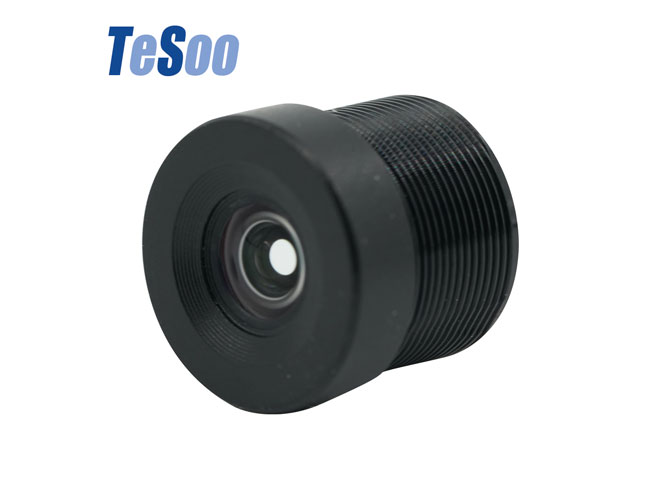

Tesoo Pinhole Lens

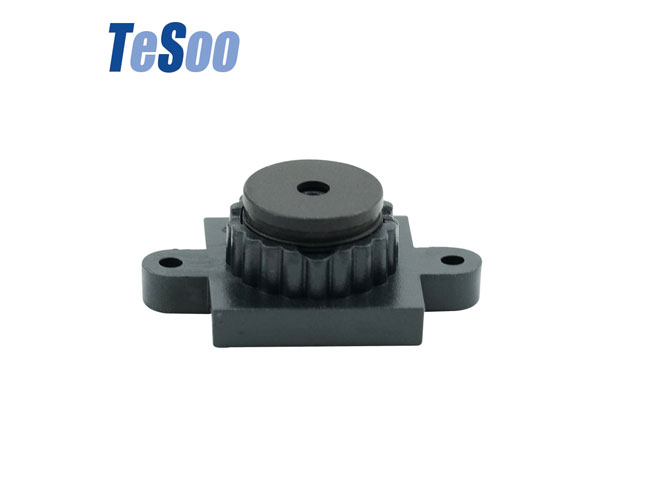

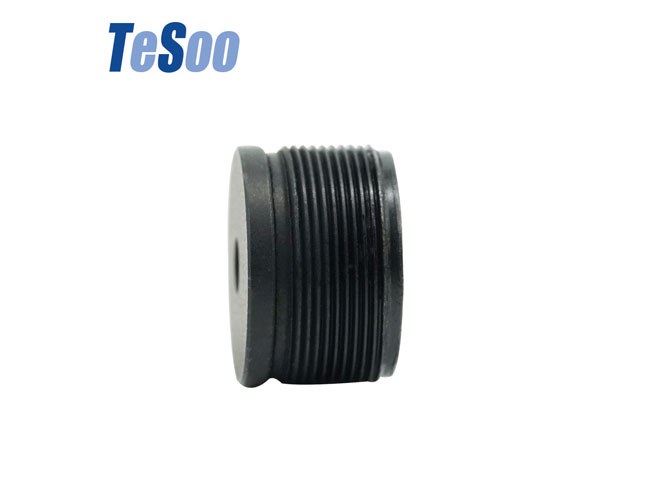

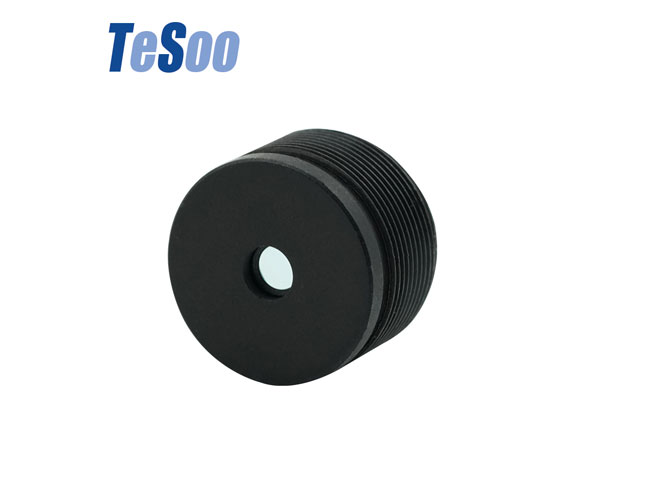

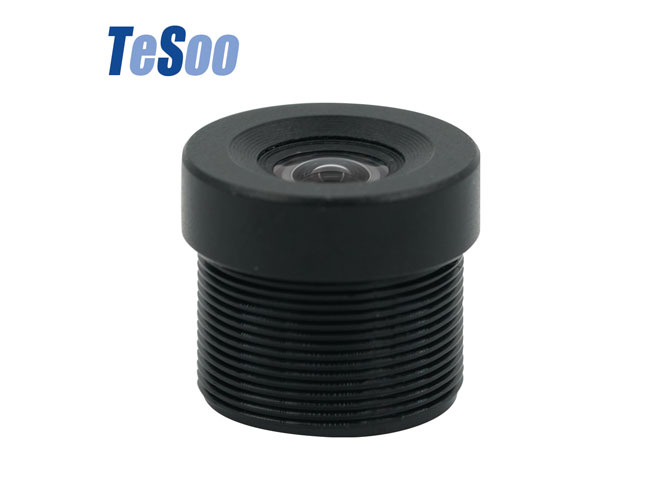

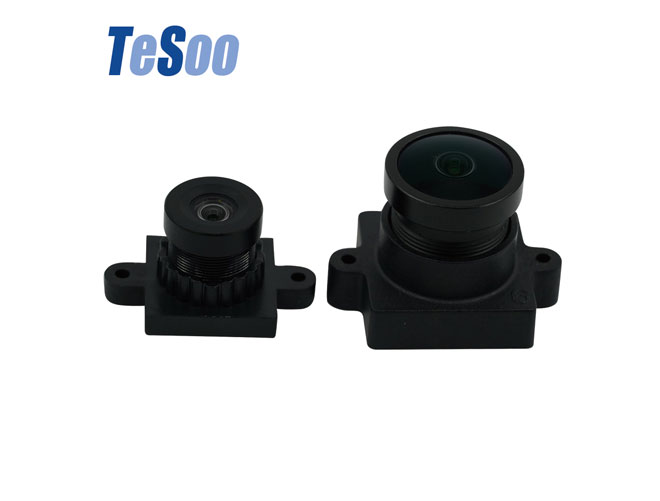

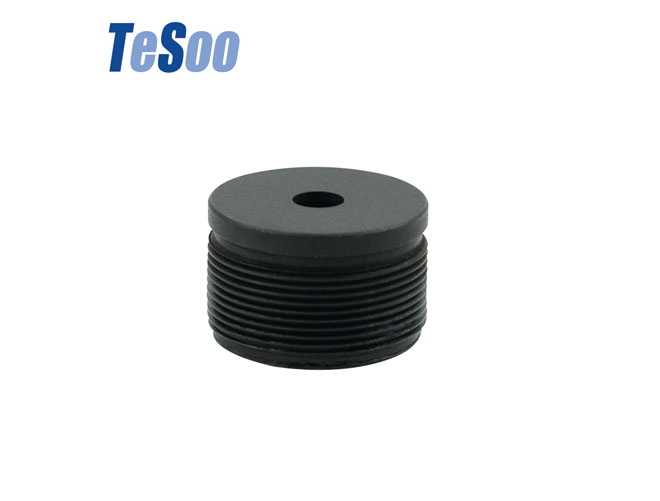

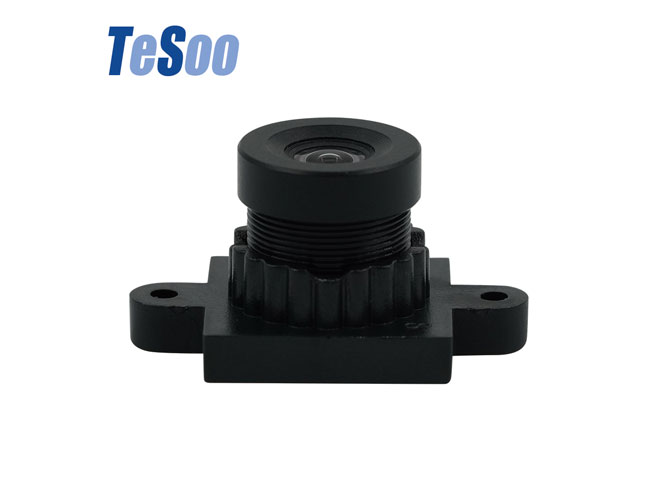

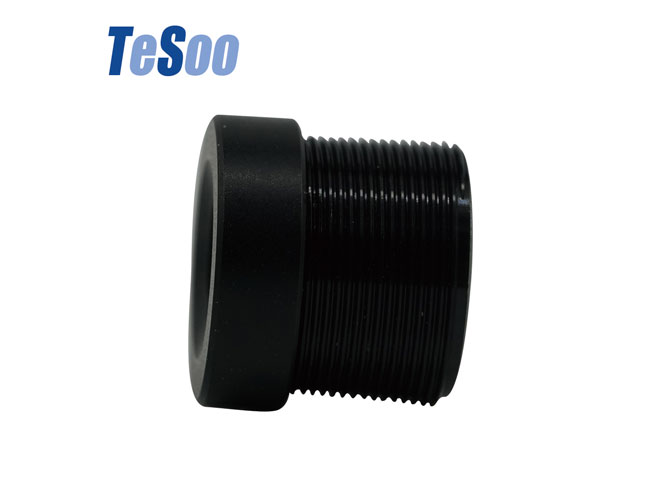

The pinhole Lens that Tescoo offers is used in manufacturing and designing of cctv cameras for surveillance and security field. These pinhole Lens are scratch-resistant with a clear vision. All the light needed to shoot goes through that small hole to the sensor. The sensor size of the pinhole camera lens is 1/2.7'' and 1/3''. TTL: 7.49/ 9.95mm. EFL: 2.60/4.80mm. F.NO: 2.4/2.6. MBFL: 1.74/1.81mm. Get m12 pinhole lens price from CCTV lens manufacturer now!

Buy Tesoo Pinhole Lens   >

Sliding

02

Specifications of Tesoo Pinhole Lens


Pinhole Camera Lens
M12 Pinhole Lens
Pinhole Lens
Pinhole Camera Lens
M12 Pinhole Lens
Pinhole Lens
PART No.TS-2710L-A10
TTL9.95mm
EFL2.60mm
F/NO2.4
MBFL1.81mm
SENSOR  SIZE1/3''1/2.7''
FOVFOV
(D)109°122°
(H)89°102°
(V)64°62°
TV-DISTORTION＜-4%＜-10.5%
MAX IMAGE CIRCLEφ6.85mm
MountM9*0.35
CONSTRUCTION1G5P+Plastic
DIAMENSIONSφ10*8.14
Operating temp.-20 ~ +75℃
Storage temp.-25 ~ +80℃


Pinhole Camera Lens
M12 Pinhole Lens
Pinhole Lens
Pinhole Camera Lens
M12 Pinhole Lens
PART No.TS-2508H-A09
TTL7.49mm
EFL4.80mm
F/NO2.6
MBFL1.74mm
SENSOR  SIZE1/3''1/2.7''
FOVFOV
(D)72°77°
(H)62°67°
(V)36°39°
TV-DISTORTION＜-1%＜-1%
MAX IMAGE CIRCLEφ8.2mm
MountM9*0.35
CONSTRUCTION2G2P +Metal
DIAMENSIONSφ9*5.75
Operating temp.-20 ~ +75℃
Storage temp.-25 ~ +80℃
