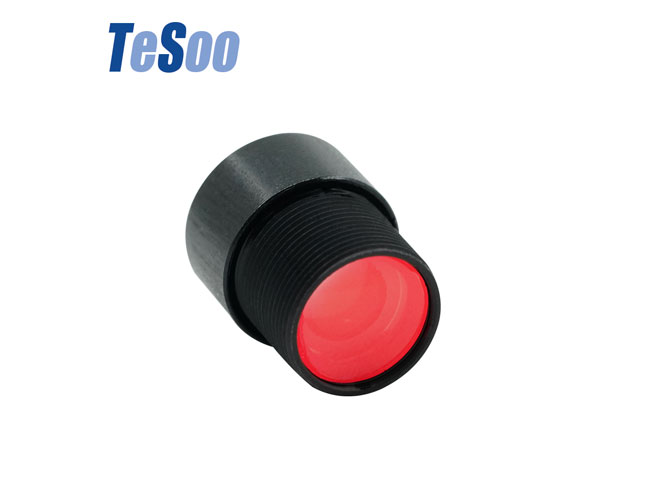

Tesoo Car Camera Lens

Tesoo car camera lens generally meets the characteristics of wide-angle, high relative illumination, high light, and other features. The sensor size of the car camera lens is 1/2.5'' to 1/4''. TTL: 13.2-21.43mm. EFL: 0.83-6.50mm. F.NO: 2.0/2.2/2.6. MBFL: 1.69-6.55mm. Get a vehicle lens quote now!

Buy Tesoo Car Camera Lens   >

Sliding

02

Specifications of Tesoo Car Camera Lens


Vehicle Lens
Car Camera Lens
Vehicle Lens
Car Camera Lens
Vehicle Lens
PART No.TS-4013T-A00
TTL14.11mm
EFL0.83mm
F/NO2.0
MBFL1.69mm
SENSOR  SIZE1/4''1/3''
FOVFOV
(D)195°195°
(H)195°195°
(V)158°190°
DISTORTION(F-θ)＜30%＜30%
MAX IMAGE CIRCLEφ3.68mm
MountM12*0.5
CONSTRUCTION2G4P+Plastic
IP RatingIPX7 or IP69K
DIAMENSIONSφ14/16*12.42
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Car Camera Lens
Vehicle Lens
Car Camera Lens
Vehicle Lens
Car Camera Lens
PART No.TS-2913U-A00
TTL13.2mm
EFL1.35mm
F/NO2.0
MBFL2.20mm
SENSOR  SIZE1/2.9''1/2.7''
FOVFOV
(D)215°215°
(H)215°215°
(V)130°140°
DISTORTION(F-θ)＜-20%＜-20%
MAX IMAGE CIRCLEφ4.70mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
IP RatingIPX7 or IP69K
DIAMENSIONSφ14/16*11
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Vehicle Lens
Car Camera Lens
Vehicle Lens
Car Camera Lens
Vehicle Lens
PART No.TS-2717O-A00
TTL16.81mm
EFL3.20mm
F/NO2.2
MBFL3.68mm
SENSOR  SIZE1/3''1/2.7''
FOVFOV
(D)128°150°
(H)105°118°
(V)54°60°
TV-DISTORTION＜-26%＜-32%
MAX IMAGE CIRCLEφ6.90mm
MountM12*0.5
CONSTRUCTION All Glass +Metal
DIAMENSIONSφ14*13.13
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Car Camera Lens
Vehicle Lens
Car Camera Lens
Vehicle Lens
Car Camera Lens
PART No.TS-2716G-A08
TTL15.69mm
EFL5.60mm
F/NO2.6
MBFL6.24mm
SENSOR  SIZE1/3''1/2.7''
FOVFOV
(D)64°71°
(H)50°57°
(V)38°42°
TV-DISTORTION＜-5%＜-6.5%
MAX IMAGE CIRCLEφ6.80mm
MountM7*0.35
CONSTRUCTIONAll Glass+Metal
DIAMENSIONSφ8.1*9.45
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Vehicle Lens
Car Camera Lens
Vehicle Lens
Car Camera Lens
Vehicle Lens
PART No.TS-2721F-A00
TTL21.43mm
EFL6.50mm
F/NO2.0
MBFL6.55mm
SENSOR  SIZE1/2.7''1/2.5''
FOVFOV
(D)59°64°
(H)48°51°
(V)34°40°
TV-DISTORTION＜-8%＜-12%
MAX IMAGE CIRCLEφ8.80mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*15.45
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃
