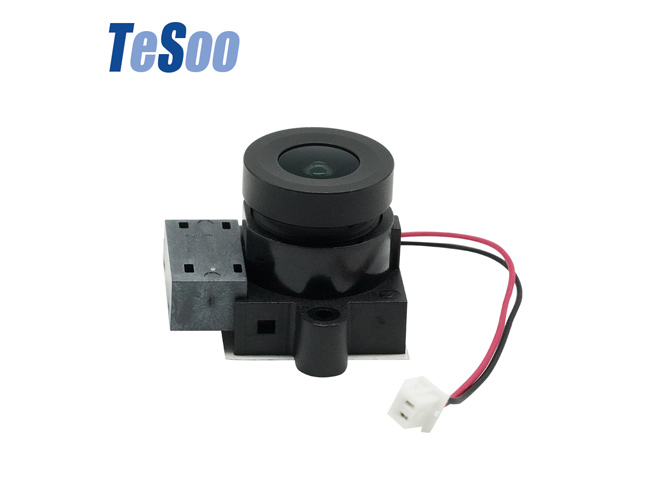

Tesoo IR Cut Filter with Auto Switch

Tesoo introduces its state-of-the-art IR cut filter switch, designed to provide superior quality imaging and video recording results. Tesoo IR cut filter with auto switch mainly made of metal, is used for the combination and fixation of lens and camera. The rated voltage of m12 IR cut filter range from 3.5V ~ 6V to 2V ~ 4V. Driving current: 100mA±10%. IR/AR glass thickness: 0.21/0.30mm. Get IR cut filter switch price now!

Buy Tesoo IR Cut Filter with Auto Switch   >

Sliding

02

Tesoo IR Cut Filter with Auto Switch Specifications


Ir Cut Filter with Auto Switch
Ir Cut Filter Switch
Ir Cut Filter with Auto Switch
Ir Cut Filter Switch
PART No.F5-21
Rated voltage3.5V ~ 6V
Driving current100mA±10%
IR glass thickness0.21mm
AR glass thickness0.21mm
Coating dataIR CoatingAR coating
390~430nmT=50%@420±10nmTave＞92%, T＞85%
430-635nmT=50%@645±10nm
635~950nm＞750nm, Tave＜1%
Working condition:Day: Red wire(+) Black wire(-)
Night: Red wire(-) Black wire(+)
MountM12*0.5
Height10.6mm
DIAMENSIONS24.8*22mm
Operating temp.-30 ~ +80℃
Storage temp.-30 ~ +80℃


Ir Cut Filter Switch
Ir Cut Filter with Auto Switch
Ir Cut Filter Switch
Ir Cut Filter with Auto Switch
PART No.MX1-21
Rated voltage3.5V ~ 6V
Driving current100mA±10%
IR glass thickness0.21mm
AR glass thickness0.21mm
Coating dataIR CoatingAR coating
390~430nmT=50%@420±10nmTave＞92%, T＞85%
430-635nmT=50%@645±10nm
635~950nm＞750nm, Tave＜1%
Working condition:Day: Red wire(+) Black wire(-)
Night: Red wire(-) Black wire(+)
MountM12*0.5
Height11.95mm
DIAMENSIONS24.8*32.6mm
Operating temp.-30 ~ +80℃
Storage temp.-30 ~ +80℃


Ir Cut Filter with Auto Switch
Ir Cut Filter Switch
Ir Cut Filter with Auto Switch
Ir Cut Filter Switch
Ir Cut Filter with Auto Switch
PART No.046B61
Rated voltage2V ~ 4V
Driving current100mA±10%
IR glass thickness0.30mm
AR glass thickness0.30mm
Coating dataIR CoatingAR coating
410~430nmT＞80%Tave＞97%, T＞95%
420-600nmT=50%@645±10nm
635~950nm＞750nm, Tave＜2%
Working condition:Day: Red wire(+) Black wire(-)
Night: Red wire(-) Black wire(+)
MountM12*0.5
Height11.25mm
DIAMENSIONS27.14*20.2mm
Operating temp.-30 ~ +80℃
Storage temp.-30 ~ +80℃
