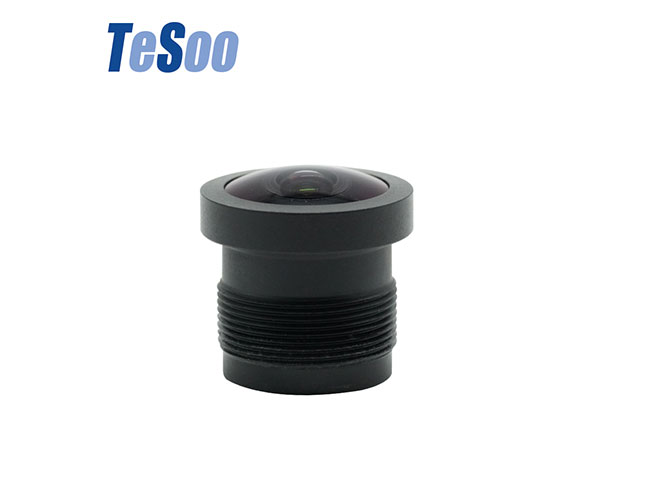

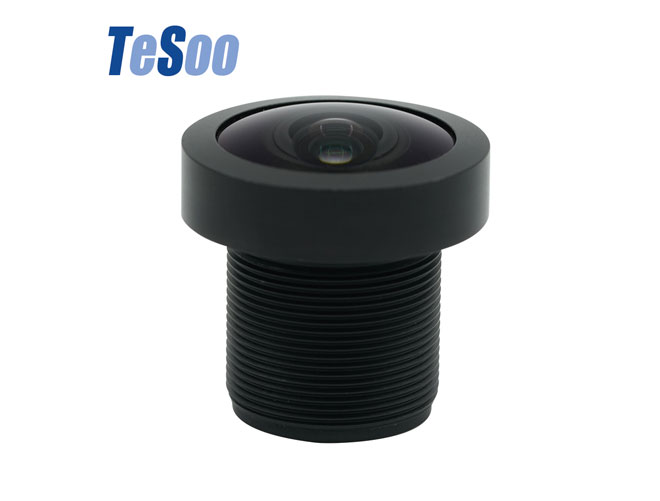

Tesoo Camera Lens Front View

Tesoo camera lens front view generally meet the characteristics of wide angle, high relative illumination, high light and other features. The sensor size of camera lens front view is 1/2.3'' to 1/3''. TTL:  15.71-23mm. EFL: 2.20-3.65mm. F.NO: 1.8/2.0/2.2/2.4. Get camera lens front view quote now!

Buy Tesoo Camera Lens Front View   >

Sliding

02

Specifications of Tesoo Camera Lens Front View


Lens Front View
Camera Lens Front View
Lens Front View
Camera Lens Front View
Lens Front View
PART No.TS-2316M-A00
TTL15.91mm
EFL3.65mm
F/NO2.0
MBFL3.68mm
SENSOR  SIZE1/3''1/2.7''
FOVFOV
(D)108°120°
(H)88°97°
(V)48°52°
TV-DISTORTION＜-16%＜-18%
MAX IMAGE CIRCLEφ8.20mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*12.23
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Camera Lens Front View
Lens Front View
Camera Lens Front View
Lens Front View
Camera Lens Front View
PART No.TS-2717O-A00
TTL16.81mm
EFL3.20mm
F/NO2.2
MBFL3.68mm
SENSOR  SIZE1/3''1/2.7''
FOVFOV
(D)128°150°
(H)105°118°
(V)54°60°
TV-DISTORTION＜-26%＜-32%
MAX IMAGE CIRCLEφ6.90mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*13.13
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Camera Lens Front View
Lens Front View
Camera Lens Front View
Lens Front View
Camera Lens Front View
PART No.TS-2716N-A00
TTL15.71mm
EFL3.20mm
F/NO2.0
MBFL3.13mm
SENSOR  SIZE1/3''1/2.7''
FOVFOV
(D)128°146°
(H)106°117°
(V)56°60°
TV-DISTORTION＜-26%＜-30%
MAX IMAGE CIRCLEφ6.90mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*12.58
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Lens Front View
Camera Lens Front View
Lens Front View
Camera Lens Front View
Lens Front View
PART No.TS-2323O-A17
TTL23mm
EFL3.20mm
F/NO1.8
MBFL5.91mm
SENSOR  SIZE1/2.7''1/2.3''
FOVFOV
(D)124°152°
(H)107°117°
(V)59°86°
TV-DISTORTION＜-25%＜-30%
MAX IMAGE CIRCLEφ8.20mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ17*17.09
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Lens Front View
Camera Lens Front View
Lens Front View
Camera Lens Front View
Lens Front View
PART No.TS-2717R-A00
TTL16.60mm
EFL2.70mm
F/NO2.4
MBFL3.86mm
SENSOR  SIZE1/3''1/2.7''
FOVFOV
(D)160°176°
(H)132°140°
(V)67°71°
TV-DISTORTION＜-32%＜-45%
MAX IMAGE CIRCLEφ6.90mm
MountM12*0.5
CONSTRUCTIONAll Glass+Metal
DIAMENSIONSφ14*12.74
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Camera Lens Front View
Camera Lens Front View
Lens Front View
Lens Front View
PART No.TS-2518S-A00
TTL17.89mm
EFL2.55mm
F/NO2.4
MBFL3.55mm
SENSOR  SIZE1/2.7''1/2.5''
FOVFOV
(D)160°176°
(H)136°150°
(V)74°85°
DISTORTION(F-θ)＜-8%＜-9.7%
MAX IMAGE CIRCLEφ7.70mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*14.34
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Camera Lens Front View
Lens Front View
Camera Lens Front View
Lens Front View
PART No.TS-2818S-A00
TTL16.64mm
EFL2.20mm
F/NO2.0
MBFL2.16mm
SENSOR  SIZE1/3''1/2.7''
FOVFOV
(D)170°188°
(H)148°160°
(V)80°85°
DISTORTION(F-θ)＜-8.2%＜-9.8%
MAX IMAGE CIRCLEφ6.90mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*14.48
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃
