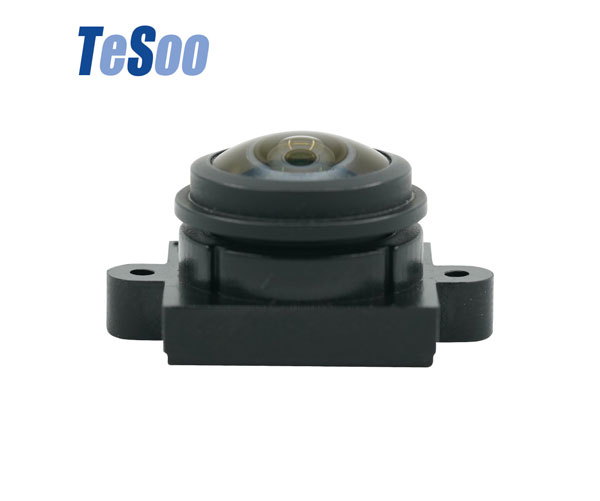

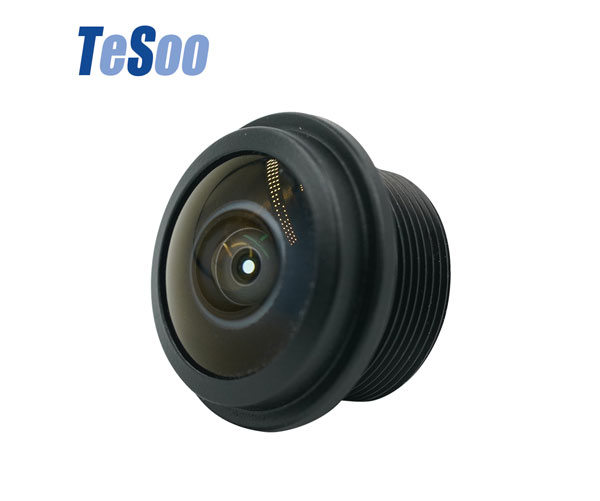

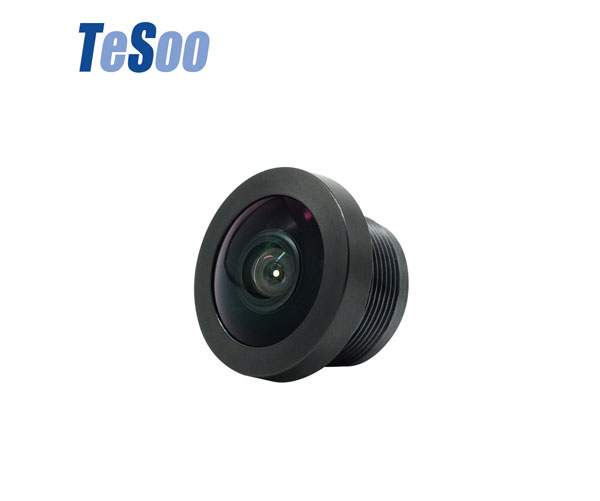

Tesoo Widest Fisheye Lens

Tesoo wide angle fisheye lens adds extra abstraction and dynamism to images, the previous mundane scenes thus being elevated. The sensor size of wide angle fisheye lens is 1/2.3'' to 1/4''. TTL: 13-17.75mm. EFL:  0.83-1.40mm. F.NO: 1.8/2.0/2.2. MBFL: 1.69-2.20mm. Get widest fisheye lens price now!

Buy Tesoo Widest Fisheye Lens   >

Sliding

02

Specifications of Tesoo Widest Fisheye Lens


Wide Angle Fisheye Lens
Widest Fisheye Lens
Wide Angle Fisheye Lens
Widest Fisheye Lens
Wide Angle Fisheye Lens
PART No.TS-2918X-A18
TTL17.75mm
EFL1.26mm
F/NO2.2
MBFL1.84mm
SENSOR SIZE1/2.7''1/2.3''
FOVFOV
(D)240°240°
(H)240°240°
(V)150°222°
DISTORTION(F-θ)＜-7%＜-7%
MAX IMAGE CIRCLEφ4.90mm
MountM12*0.5
CONSTRUCTIONAll Glass+Metal
IP RatingIPX7 or IP69K
DIAMENSIONSφ18*15.91
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Widest Fisheye Lens
Wide Angle Fisheye Lens
Widest Fisheye Lens
Wide Angle Fisheye Lens
Widest Fisheye Lens
PART No.TS-2913U-A00
TTL13.2mm
EFL1.35mm
F/NO2.0
MBFL2.20mm
SENSOR SIZE1/2.9''1/2.7''
FOVFOV
(D)215°215°
(H)215°215°
(V)130°140°
MAX IMAGE CIRCLEφ4.70mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
IP RatingIPX7 or IP69K
DIAMENSIONSφ14/16*11
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Wide Angle Fisheye Lens
Widest Fisheye Lens
Wide Angle Fisheye Lens
Widest Fisheye Lens
Wide Angle Fisheye Lens
PART No.TS-4013T-A01
TTL14.11mm
EFL0.83mm
F/NO2.0
MBFL1.69mm
SENSOR SIZE1/4''1/3''
FOVFOV
(D)220°220°
(H)210°220°
(V)158°190°
MAX IMAGE CIRCLEφ4.0mm
MountM12*0.5
CONSTRUCTION2G4P+Plastic
IP RatingIPX7 or IP69K
DIAMENSIONSφ14/16*12.42
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Widest Fisheye Lens
Wide Angle Fisheye Lens
Widest Fisheye Lens
Wide Angle Fisheye Lens
Widest Fisheye Lens
PART No.TS-3013U-A00
TTL13mm
EFL1.40mm
F/NO1.8
MBFL2.10mm
SENSOR SIZE1/3''1/2.7''
FOVFOV
(D)210°210°
(H)210°210°
(V)130°150°
MAX IMAGE CIRCLEφ4.40mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
IP RatingIPX7 or IP69K
DIAMENSIONSφ14/16*10.9
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃
