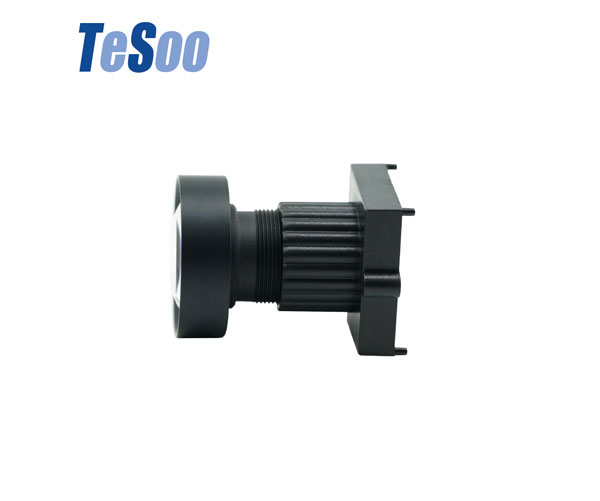

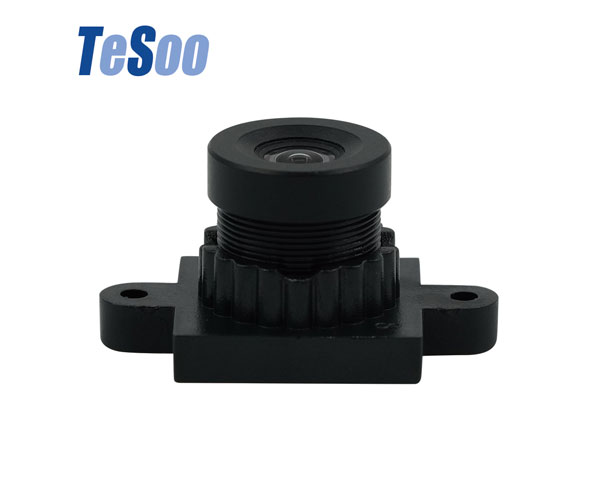

Tesoo 90 Degree Low Distortion Lens

Tesoo 90 degree angle lens can reduce the degree of perspective deformation. The sensor size of 90 degree lens is 1/1.8'' to 1/3''. TTL: 9.95-25.3mm. EFL: 2.60-5.60mm. F.NO: 2.0/2.2/2.4/2.8. MBFL: 1.81-5.06mm. Get 90 degree camera lens price now!

Buy Tesoo 90 Degree Low Distortion Lens   >

Sliding

02

Specifications of Tesoo 90 Degree Low Distortion Lens


90 Degree Lens
90 Degree Camera Lens
90 Degree Angle Lens
90 Degree Lens
90 Degree Camera Lens
90 Degree Angle Lens
PART No.TS-2710L-A10
TTL9.95mm
EFL2.60mm
F/NO2.4
MBFL1.81mm
SENSOR  SIZE1/3''1/2.7''
FOVFOV
(D)109°122°
(H)89°102°
(V)64°62°
TV-DISTORTION＜-4%＜-10.5%
MAX IMAGE CIRCLEφ6.85mm
MountM9*0.35
CONSTRUCTION1G5P+Plastic
DIAMENSIONSφ10*8.14
Operating temp.-20 ~ +75℃
Storage temp.-25 ~ +80℃


90 Degree Camera Lens
90 Degree Camera Lens
90 Degree Angle Lens
90 Degree Camera Lens
90 Degree Camera Lens
PART No.TS-2316M-A00
TTL15.91mm
EFL3.65mm
F/NO2.0
MBFL3.68mm
SENSOR  SIZE1/3''1/2.7''
FOVFOV
(D)108°120°
(H)88°97°
(V)48°52°
TV-DISTORTION＜-16%＜-18%
MAX IMAGE CIRCLEφ8.20mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*12.23
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


90 Degree Angle Lens
90 Degree Lens
90 Degree Camera Lens
90 Degree Angle Lens
90 Degree Lens
90 Degree Camera Lens
90 Degree Angle Lens
90 Degree Lens
90 Degree Camera Lens
PART No.TS-1825I-A20
TTL25.3mm
EFL4.20mm
F/NO2.8
MBFL2.21mm
SENSOR  SIZE1/2.3''1/1.8''
FOVFOV
(D)78°93°
(H)68°81°
(V)55°65°
TV-DISTORTION＜-0.3%＜-0.5%
MAX IMAGE CIRCLEφ9.6mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ20*23.09
Operating temp.-20 ~ +80℃
Storage temp.-40 ~ +90℃


90 Degree Angle Lens
90 Degree Lens
90 Degree Camera Lens
90 Degree Angle Lens
PART No.TS-2322H-A00
TTL22mm
EFL4.28mm
F/NO2.2
MBFL2.55mm
SENSOR  SIZE1/2.5''1/2.3''
FOVFOV
(D)78°82°
(H)66°69°
(V)36°55°
TV-DISTORTION＜-1%＜-1.5%
MAX IMAGE CIRCLEφ8.30mm
MountM12*0.5
CONSTRUCTION4G2P+Metal
DIAMENSIONSφ14*19.45
Operating temp.-20 ~ +75℃
Storage temp.-25 ~ +80℃


90 Degree Lens
90 Degree Camera Lens
90 Degree Angle Lens
90 Degree Lens
PART No.TS-1817I-A00
TTL16.73mm
EFL5.60mm
F/NO2.4
MBFL5.06mm
SENSOR  SIZE1/2.3''1/1.8''
FOVFOV
(D)82°93°
(H)62°78°
(V)44°50°
TV-DISTORTION＜-10%＜-12%
MAX IMAGE CIRCLEφ9.70mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*11.67
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃
