Sliding

01
Driver Monitoring Systems
1/2.7 Inch Sensor Size
1/2.7 Inch Sensor Size
Driver Monitoring Lens
Driver Monitoring Systems
1/2.7 Inch Sensor Size
1/2.7 Inch Sensor Size
Driver Monitoring
Driver Monitoring Systems
1/2.7 Inch Sensor Size
1/2.7 Inch Sensor Size
Driver Monitoring
Driver Monitoring Systems
1/2.7 Inch Sensor Size
1/2.7 Inch Sensor Size
Driver Monitoring
Driver Monitoring Systems
1/2.7 Inch Sensor Size
1/2.7 Inch Sensor Size
Driver Monitoring
Driver Monitoring Systems
1/2.7 Inch Sensor Size
1/2.7 Inch Sensor Size
Driver Monitoring
Driver Monitoring Systems

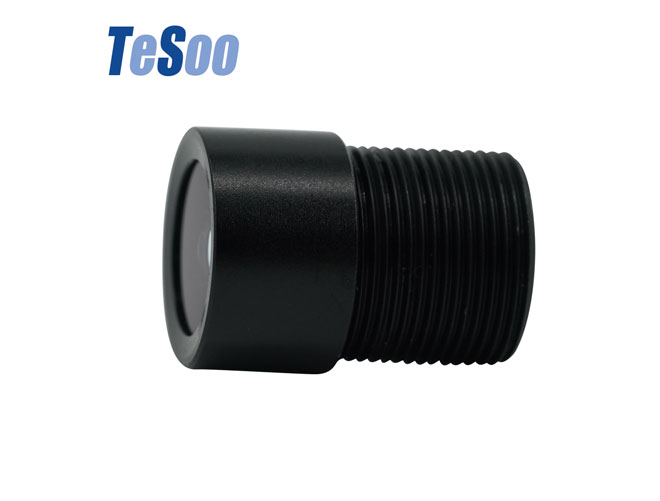

Tesoo Driver Monitoring Lens

Tesoo's driver monitoring systems uses precise driver monitoring lens, which generally meet the characteristics of wide angle, high relative illumination, high light and other features.  It has 1 2.7 inch sensor size. TTL: 15.69-22.11mm. EFL: 3.65-6.50mm. F.NO: 2.0/2.2/2.4/2.6. MBFL: 2.80/5.06/6.24/6.55mm. Get driver monitoring lens quote at Tesoo, your reliable automotive lens manufacturers now!

Buy Tesoo Driver Monitoring Lens   >

Sliding

02

Specifications of Tesoo Driver Monitoring Lens


Driver Monitoring Systems
1/2.7 Lens
1/2.7 Sensor Size
Driver Monitoring
Driver Monitoring Systems
PART No.TS-2022I-A00
TTL22.11mm
EFL5.60mm
F/NOF2.2
MBFL5.06mm
SENSOR  SIZE1/3''1/2.7''
FOVFOV
(D)63°70°
(H)50°56°
(V)38°41°
TV-DISTORTION＜-3.8%＜-5%
MAX IMAGE CIRCLEφ8.70mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*17.05
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


1/2.7 Lens
1/2.7 Sensor Size
Driver Monitoring
Driver Monitoring Systems
PART No.TS-1817I-A00
TTL16.73mm
EFL5.60mm
F/NOF2.4
MBFL5.06mm
SENSOR  SIZE1/3''1/2.7''
FOVFOV
(D)63°69°
(H)50°55°
(V)38°40°
TV-DISTORTION＜-3.6%＜-5%
MAX IMAGE CIRCLEφ9.7mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*11.67
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


1/2.7 Lens
1/2.7 Sensor Size
Driver Monitoring
Driver Monitoring Systems
1/2.7 Lens
PART No.TS-2716G-A08
TTL15.69mm
EFL5.60mm
F/NOF2.6
MBFL6.24mm
SENSOR  SIZE1/3''1/2.7''
FOVFOV
(D)64°71°
(H)50°57°
(V)38°42°
TV-DISTORTION＜-5%＜-6.5%
MAX IMAGE CIRCLEφ6.80mm
MountM7*0.35
CONSTRUCTIONAll Glass+Metal
DIAMENSIONSφ8.1*9.45
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


1/2.7 Sensor Size
Driver Monitoring
Driver Monitoring Systems
1/2.7 Lens
1/2.7 Sensor Size
Driver Monitoring
PART No.TS-2516N-A10
TTL15.95mm
EFL3.65mm
F/NOF2.0
MBFL2.80mm
SENSOR  SIZE1/4''1/3''
FOVFOV
(D)75°99°
(H)58°78°
(V)44°58°
TV-DISTORTION＜-10%＜-15%
MAX IMAGE CIRCLEφ7.80mm
MountM7*0.35
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ10*10.53
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Driver Monitoring Systems
1/2.7 Lens
1/2.7 Sensor Size
Driver Monitoring
Driver Monitoring Systems
PART No.TS-2721F-A00
TTL21.43mm
EFL6.50mm
F/NOF2.0
MBFL6.55mm
SENSOR  SIZE1/2.7''1/2.5''
FOVFOV
(D)59°64°
(H)48°51°
(V)34°40°
TV-DISTORTION＜-8%＜-12%
MAX IMAGE CIRCLEφ8.80mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*15.45
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃
