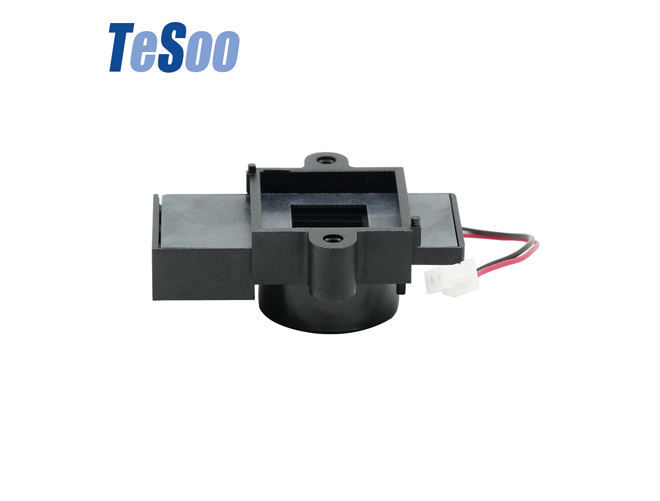

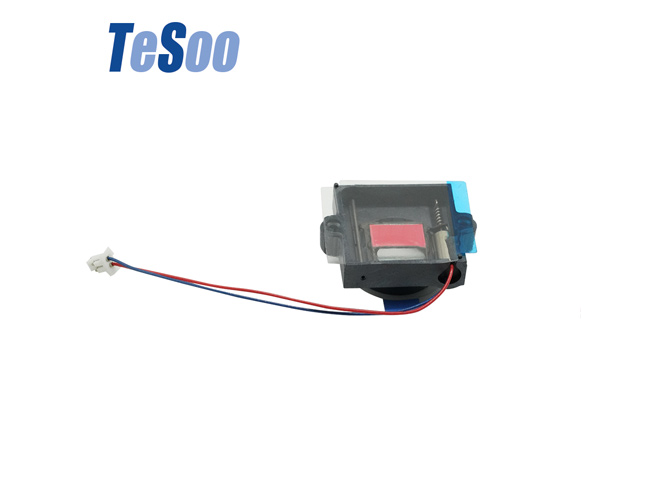

Tesoo CCTV Camera Ir Cut Filter

Tesoo CCTV camera ir cut filter mainly made of metal, is used for the combination and fixation of lens and camera. Our m12 ir cut filter range is rated between 3.5V ~ 6V to 2V ~ 4V, with a recommended driving current of 100mA±10%. With an IR/AR glass thickness ranging from 0.21/0.30mm, our CCTV camera ir cut filter assembly offers unparalleled value and accuracy in the market. Contact us today to get the best m12 ir cut filter price and take your imaging needs to the next level.

Buy Tesoo CCTV Camera Ir Cut Filter >

PART No.	F5-21
Rated voltage	3.5V ~ 6V
Driving current	100mA±10%
IR glass thickness	0.21mm
AR glass thickness	0.21mm
Coating data	IR Coating	AR coating
390~430nm	T=50%@420±10nm	Tave＞92%, T＞85%
430-635nm	T=50%@645±10nm
635~950nm	＞750nm, Tave＜1%
Working condition:	Day: Red wire(+) Black wire(-)
	Night: Red wire(-) Black wire(+)
Mount	M12*0.5
Height	10.6mm
DIAMENSIONS	24.8*22mm
Operating temp.	-30 ~ +80℃
Storage temp.	-30 ~ +80℃

PART No.	MX1-21
Rated voltage	3.5V ~ 6V
Driving current	100mA±10%
IR glass thickness	0.21mm
AR glass thickness	0.21mm
Coating data	IR Coating	AR coating
390~430nm	T=50%@420±10nm	Tave＞92%, T＞85%
430-635nm	T=50%@645±10nm
635~950nm	＞750nm, Tave＜1%
Working condition:	Day: Red wire(+) Black wire(-)
	Night: Red wire(-) Black wire(+)
Mount	M12*0.5
Height	11.95mm
DIAMENSIONS	24.8*32.6mm
Operating temp.	-30 ~ +80℃
Storage temp.	-30 ~ +80℃

PART No.	046B61
Rated voltage	2V ~ 4V
Driving current	100mA±10%
IR glass thickness	0.30mm
AR glass thickness	0.30mm
Coating data	IR Coating	AR coating
410~430nm	T＞80%	Tave＞97%, T＞95%
420-600nm	T=50%@645±10nm
635~950nm	＞750nm, Tave＜2%
Working condition:	Day: Red wire(+) Black wire(-)
	Night: Red wire(-) Black wire(+)
Mount	M12*0.5
Height	11.25mm
DIAMENSIONS	27.14*20.2mm
Operating temp.	-30 ~ +80℃
Storage temp.	-30 ~ +80℃
