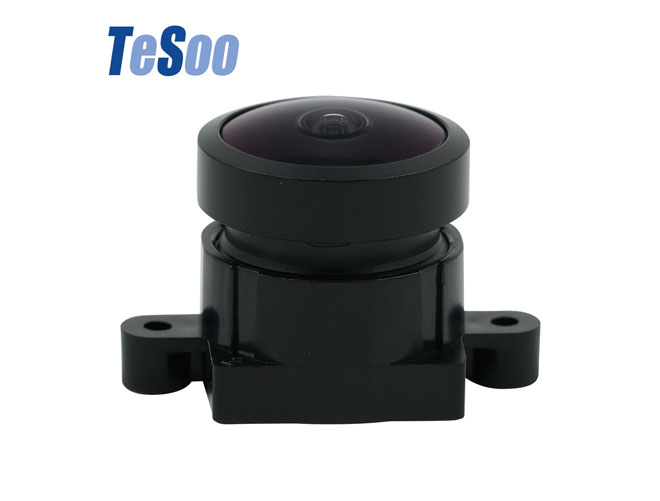

Tesoo Fisheye 180 Degree Lens

Tesoo 180 degree lens adds extra abstraction and dynamism to images, the previous mundane scenes thus being elevated. The sensor size of 180 camera/degree lens is 1/2.3'' to 1/4''. TTL: 11.91-19mm. EFL: 1.50-2.3mm. F.NO: 2.0/2.4. MBFL: 2.10-3.5mm. Get 180 degree camera lens price now!

Buy Tesoo Fisheye 180 Degree Lens   >

Sliding

02

Tesoo 180 Degree Lens Specifications


Fisheye 180
180 Camera Lens
180 Fisheye Lens
180 Degree Lens
Camera Lens 180 Degrees
PART No.TS-2512T-A10
TTL11.91mm
EFL1.98mm
F/NO2.0
MBFL2.6mm
SENSOR SIZE1/2.5''
FOV
(D)185°
(H)185°
(V)117°
MAX IMAGE CIRCLEφ5.60mm
MountM8*0.35
CONSTRUCTION6E
IP RatingCan be customized
DIAMENSIONSφ9.5*9.1
Operating temp.-20 ~ +75℃
Storage temp.-25 ~ +80℃


180 Degree Fisheye Lens
180 Degree Camera Lens
Fisheye 180 Degree
Fisheye 180
180 Camera Lens
PART No.TS-2014R-A00
TTL13.5mm
EFL2.0mm
F/NO2.0
MBFL3.1mm
SENSOR SIZE1/2.3''
FOV
(D)180°
(H)180°
(V)130°
MAX IMAGE CIRCLEφ5.3mm
MountM12*0.5
CONSTRUCTIONAll Glass+Metal
IP RatingIPX7
DIAMENSIONSφ14*10.4
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


180 Fisheye Lens
180 Degree Lens
Camera Lens 180 Degrees
180 Degree Fisheye Lens
PART No.TS-2818S-A02
TTL16.64mm
EFL2.20mm
F/NO2.0
MBFL2.16mm
SENSOR SIZE1/2.7''1/2.3''
FOVFOV
(D)188°200°
(H)160°176°
(V)85°130°
MAX IMAGE CIRCLEφ6.90mm
MountM12*0.5
CONSTRUCTIONAll Glass+Metal
IP RatingIPX7 or IP69K
DIAMENSIONSφ14/16*14.48
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


180 Degree Camera Lens
Fisheye 180 Degree
Fisheye 180
180 Camera Lens
180 Fisheye Lens
PART No.TS-2512T-A00
TTL12.2mm
EFL1.98mm
F/NO2.0
MBFL2.6mm
SENSOR SIZE1/2.5''
FOV
(D)185°
(H)185°
(V)128°
MAX IMAGE CIRCLEφ5.60mm
MountM12*0.5
CONSTRUCTION6E
IP RatingCan be customized
DIAMENSIONSφ14*9.2
Operating temp.-20 ~ +75℃
Storage temp.-25 ~ +80℃


180 Degree Lens
Camera Lens 180 Degrees
180 Degree Fisheye Lens
180 Degree Camera Lens
Fisheye 180 Degree
PART No.TS-4019R-A00
TTL19mm
EFL2.3mm
F/NO2.4
MBFL3.5mm
SENSOR SIZE1/4''
FOV
(D)184°
(H)135°
(V)68°
MAX IMAGE CIRCLEφ4.5mm
MountM12*0.5
CONSTRUCTIONAll Glass+Metal
IP RatingIPX7
DIAMENSIONSφ14*15.28
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Fisheye 180
180 Camera Lens
180 Fisheye Lens
180 Degree Lens
Camera Lens 180 Degrees
PART No.TS-3014S-A00
TTL13.50mm
EFL1.50mm
F/NO2.0
MBFL2.10mm
SENSOR SIZE1/4''1/3''
FOVFOV
(D)178°190°
(H)150°190°
(V)80°120°
MAX IMAGE CIRCLEφ4.80mm
MountM12*0.5
CONSTRUCTIONAll Glass+Metal
IP RatingIPX7 or IP69K
DIAMENSIONSφ14/16*11.4
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃
