Sliding

01
CS Mount Motorized Zoom Lens
CS Mount Lens
CS Mount Zoom Lens
C CS Mount Lenses
10~50mm Lens
CS Mount Motorized Zoom Lens
CS Mount Lens

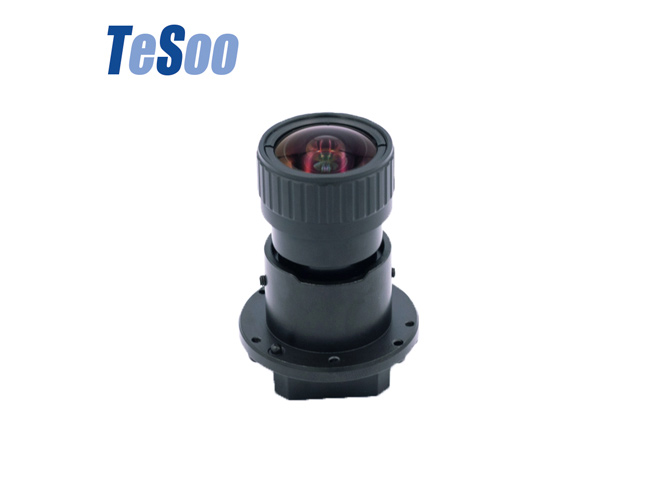

Tesoo CS Mount Motorized Zoom Lens

Tesoo CS mount motorized zoom lens is one of our most popular industrial lenses. The sensor size of C-mount motorized zoom lens is 1/1.8'' to 1/3'". TTL: 78.83-112.11mm. EFL: 5-60mm. F.NO: 1.0±5%/1.4/1.6. Get 10~50mm lens price now!

Buy Tesoo CS Mount Motorized Zoom Lens   >

Sliding

02

Tesoo CS Mount Motorized Zoom Lens Specifications


CS Mount Motorized Zoom Lens
CS Mount Lens
PART No.TS-30A-0660CS
SENSOR SIZE1/3''
TTL78.83mm
M.O.D0.3m
Effl6mm~60mm
F/NO.F1.6
MBFL12.53mm
ResolutionHD
FOVWT
(D/H/V)50°4.9°
IRISManual W/Lock
ZOOMManual W/Lock
MOUNTCS Mount
WEIGHT160g
DIAMENSIONSφ36*69.8
CONSTRUCTIONAluminium Alloy+All Glass
ConnectorZinc Alloy


C CS Mount Lenses

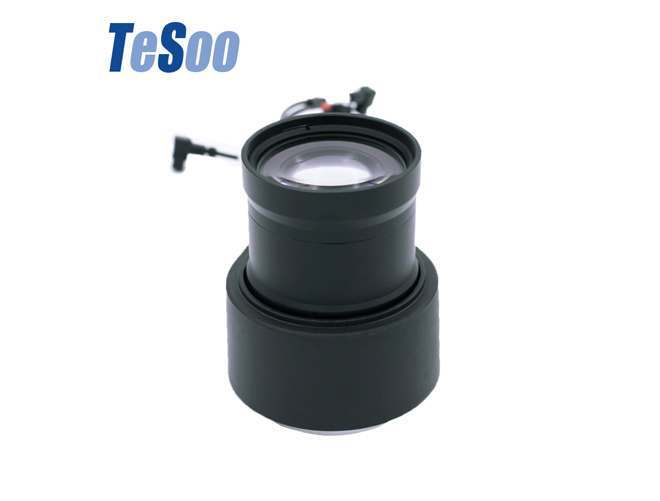

CS Mount Zoom Lens
PART No.TS-1050E17-CS
TTL112.11mm
EFL10.9mm(W)-43mm(T)
F/NO1.0±5%
MBFL7.36mm
SENSOR SIZE1/1.8''
WT
(D)46.6°11.5°
(H)40.3°10°
(V)22.6°5.6°
TV-DISTORTION＜-2%＜-1%
MAX IMAGE CIRCLEφ9.2mm
ZOOMMotorized
MountCS
CONSTRUCTIONAll Glass +Metal
RESOLUTIONCenterφ6.4
250 lp/mm160 lp/mm


10~50mm Lens
CS Mount Motorized Zoom Lens
PART No.TS-25C-0550CS
SENSOR SIZE1/2.5''
TTL87.03mm
M.O.D0.25m
Effl5mm~50mm
F/NO.F1.4
MBFL12.53mm
Resolution3MP
FOVWT
(D/H/V)51.5°5.36°
IRISManual W/Lock
ZOOMManual W/Lock
MOUNTCS Mount
WEIGHT152.5g
DIAMENSIONSφ44*78.5
CONSTRUCTIONAluminium Alloy+All Glass
ConnectorZinc Alloy
