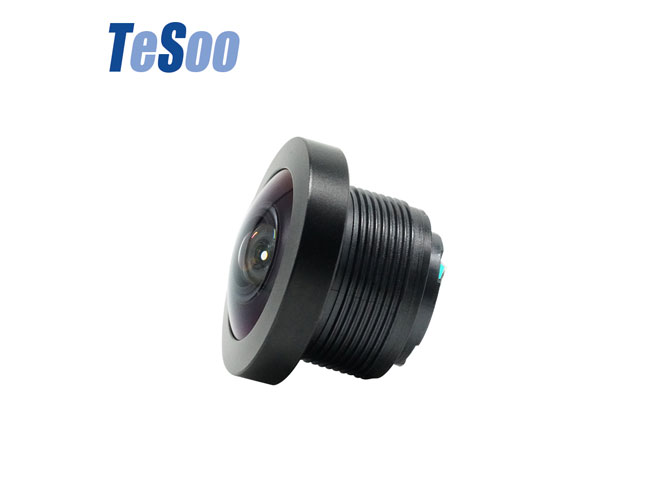

Tesoo Ultra Wide Full Frame Lens

Name: Tesoo Ultra Wide Full Frame Lens
Brand: Shenzhen Tesoo Optical Co., Ltd.
Price: 20 USD
Rating: 4.4 (5 reviews)

Tesoo full frame ultra wide angle lens can show a considerable range of clarity and helps to enhance the appeal of the picture. The sensor size of full frame ultra wide angle lens is 1/2.3'' to 1/4''. TTL: 13.50-16.64mm. EFL: 0.83-2.20mm. F.NO: 2.0/2.4. Get ultra wide full frame lens price now!

Buy Tesoo Ultra Wide Full Frame Lens >

Sliding

Specifications of Tesoo Ultra Wide Full Frame Lens



PART No.	TS-2816T-A01
TTL	15.89mm
EFL	1.83mm
F/NO	2.4
MBFL	2.63mm
SENSOR SIZE	1/2.7''	1/2.3''
	FOV	FOV
(D)	212°	220°
(H)	180°	198°
(V)	102°	150°
DISTORTION(F-θ)	＜-0.6%	＜-1%
MAX IMAGE CIRCLE	φ6.80mm
Mount	M12*0.5
CONSTRUCTION	All Glass+Metal
IP Rating	IPX7 or IP69K
DIAMENSIONS	φ14/16*13.26
Operating temp.	-40 ~ +85℃
Storage temp.	-40 ~ +90℃



PART No.	TS-2818S-A02
TTL	16.64mm
EFL	2.20mm
F/NO	2.0
MBFL	2.16mm
SENSOR SIZE	1/2.7''	1/2.3''
	FOV	FOV
(D)	188°	200°
(H)	160°	176°
(V)	85°	130°
MAX IMAGE CIRCLE	φ6.90mm
Mount	M12*0.5
CONSTRUCTION	All Glass+Metal
IP Rating	IPX7 or IP69K
DIAMENSIONS	φ14/16*14.48
Operating temp.	-40 ~ +85℃
Storage temp.	-40 ~ +90℃



PART No.	TS-2015T-A00
TTL	14.8mm
EFL	1.70mm
F/NO	2.0
MBFL	2.10mm
SENSOR SIZE	1/2.7''	1/2.3''
	FOV	FOV
(D)	200°	200°
(H)	190°	200°
(V)	100°	150°
DISTORTION(F-θ)	＜-20%	＜-20%
MAX IMAGE CIRCLE	φ5.90mm
Mount	M12*0.5
CONSTRUCTION	2G4P+Metal
IP Rating	IPX7 or IP69K
DIAMENSIONS	φ14/16*13.26
Operating temp.	-40 ~ +85℃
Storage temp.	-40 ~ +90℃



PART No.	TS-2314T-A10
TTL	14mm
EFL	1.80mm
F/NO	2.0
MBFL	2.33mm
SENSOR SIZE	1/4''	1/2.8''
	FOV	FOV
(D)	177°	200°
(H)	136°	200°
(V)	79°	105°
TV-DISTORTION	＜-45%	＜-52%
MAX IMAGE CIRCLE	φ4.7mm
Mount	M7*0.35
CONSTRUCTION	All Glass +Metal
DIAMENSIONS	φ10*11.67
Operating temp.	-40 ~ +85℃
Storage temp.	-40 ~ +90℃



PART No.	TS-3014S-A00
TTL	13.50mm
EFL	1.50mm
F/NO	2.0
MBFL	2.10mm
SENSOR SIZE	1/4''	1/3''
	FOV	FOV
(D)	178°	190°
(H)	150°	190°
(V)	80°	120°
MAX IMAGE CIRCLE	φ4.80mm
Mount	M12*0.5
CONSTRUCTION	All Glass+Metal
IP Rating	IPX7 or IP69K
DIAMENSIONS	φ14/16*11.4
Operating temp.	-40 ~ +85℃
Storage temp.	-40 ~ +90℃



PART No.	TS-4013T-A01
TTL	14.11mm
EFL	0.83mm
F/NO	2.0
MBFL	1.69mm
SENSOR SIZE	1/4''	1/3''
	FOV	FOV
(D)	220°	220°
(H)	210°	220°
(V)	158°	190°
DISTORTION(F-θ)	＜27%	＜27%
MAX IMAGE CIRCLE	φ4.0mm
Mount	M12*0.5
CONSTRUCTION	2G4P+Plastic
IP Rating	IPX7 or IP69K
DIAMENSIONS	φ14/16*12.42
Operating temp.	-40 ~ +85℃
Storage temp.	-40 ~ +90℃
