Tesoo M7 Mini Lens

Tesoo m7 lens is a single thin and flat structure with multiple waveguides (looks like tiny pillars) arranged in a specific pattern. The sensor size of m7 lens is 1/2.5'' to 1/9''. TTL: 2.7-15.95mm. EFL: 1.03-5.60mm. F.NO: 2.0/2.6/4.0/5.7. MBFL: 0.55-6.24mm. Get m7 lens price now!

Buy Tesoo M7 Mini Lens   >

Sliding

02

Specifications of Tesoo M7 Mini Lens


M7 Lens
M7 Lens
M7 Lens
M7 Lens
M7 Lens

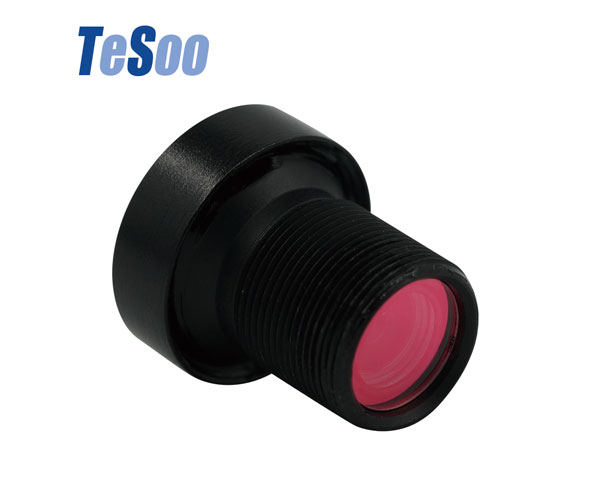

PART No.TS-2716G-A08
TTL15.69mm
EFL5.60mm
F/NO2.6
MBFL6.24mm
SENSOR  SIZE1/3''1/2.7''
FOVFOV
(D)64°71°
(H)50°57°
(V)38°42°
TV-DISTORTION＜-5%＜-6.5%
MAX IMAGE CIRCLEφ6.80mm
MountM7*0.35
CONSTRUCTIONAll Glass+Metal
DIAMENSIONSφ8.1*9.45
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


M7 Lens
M7 Lens
M7 Lens
M7 Lens
M7 Lens
M7 Lens

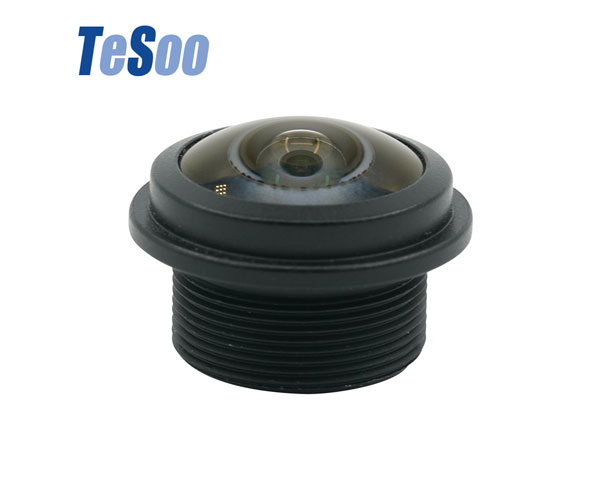

PART No.TS-2314T-A10
TTL14mm
EFL1.80mm
F/NO2.0
MBFL2.33mm
SENSOR  SIZE1/4''1/2.8''
FOVFOV
(D)177°200°
(H)136°200°
(V)79°105°
TV-DISTORTION＜-45%＜-52%
MAX IMAGE CIRCLEφ4.7mm
MountM7*0.35
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ10*11.67
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


M7 Lens
M7 Lens
M7 Lens
M7 Lens
M7 Lens
PART No.TS-2512T-A00
TTL11.91mm
EFL1.98mm
F/NO2.0
MBFL2.6mm
SENSOR  SIZE1/2.5''1/3''
FOVFOV
(D)185°185°
(H)185°172°
(V)117°90°
TV-DISTORTION＜-33%＜-28%
MAX IMAGE CIRCLEφ5.6mm
MountM8*0.35
RESOLUTION5MP
DIAMENSIONSφ9.5*9.1
Operating temp.-20 ~ +70℃
Storage temp.-40 ~ +80℃


M7 Lens
M7 Lens
M7 Lens
M7 Lens
M7 Lens

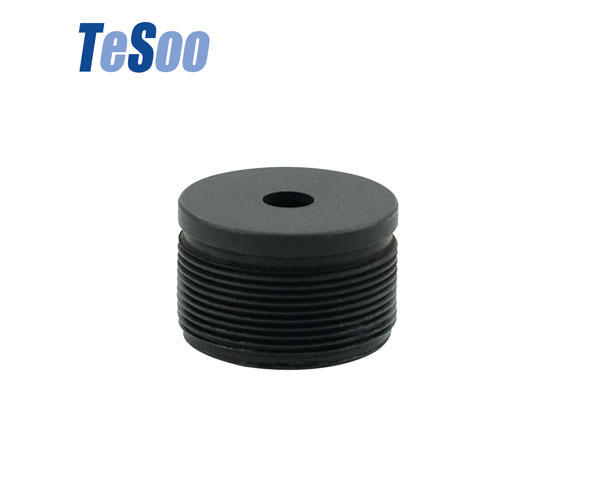

PART No.TS-4006E-AM6
TTL5.99mm
EFL4.63mm
F/NO5.7
MBFL1.99mm
SENSOR  SIZE1/4''
FOV
(D)50°
(H)44°
(V)26°
TV-DISTORTION＜-0.08%
MAX IMAGE CIRCLEφ4.8mm
MountM5.8*0.235
RESOLUTION5MP
DIAMENSIONSφ3*4
Operating temp.-20 ~ +70℃
Storage temp.-25~ +80℃


M7 Lens
M7 Lens
M7 Lens
M7 Lens
M7 Lens
PART No.TS-2716N-A10
TTL15.95mm
EFL3.65mm
F/NO2.0
MBFL2.80mm
SENSOR  SIZE1/3.2''1/2.7''
FOVFOV
(D)105°120°
(H)83°97°
(V)47°52°
TV-DISTORTION＜-15%＜-20%
MAX IMAGE CIRCLEφ7.8mm
MountM7*0.35
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ10*13.15
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


M7 Lens
M7 Lens
M7 Lens
M7 Lens
M7 Lens
PART No.TS-2516N-A10
TTL15.95mm
EFL3.65mm
F/NO2.0
MBFL2.80mm
SENSOR  SIZE1/3.2''1/2.7''
FOVFOV
(D)105°120°
(H)83°97°
(V)47°52°
TV-DISTORTION＜-15%＜-20%
MAX IMAGE CIRCLEφ7.8mm
MountM7*0.35
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ10*13.15
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


M7 Lens
M7 Lens
M7 Lens
M7 Lens
PART No.TS-2709G-A08
TTL8.47mm
EFL4.60mm
F/NO2.6
MBFL1.48mm
SENSOR  SIZE1/3''1/2.7''
FOVFOV
(D)68°72°
(H)59°66°
(V)38°39°
TV-DISTORTION＜-1.5%＜-2%
MAX IMAGE CIRCLEφ6.85mm
MountM9*0.35
CONSTRUCTION3G1MG+Metal
DIAMENSIONSφ9*6.99
Operating temp.-30 ~ +80℃
Storage temp.-40 ~ +85℃


M7 Lens
M7 Lens
M7 Lens
M7 Lens
M7 Lens
M7 Lens
PART No.TS-9002M-AM3
TTL2.7mm
EFL1.03mm
F/NO4.0
MBFL0.55mm
SENSOR  SIZE1/9''
FOV
(D)129°
(H)99°
(V)50°
TV-DISTORTION＜-25%
MAX IMAGE CIRCLEφ2.1mm
MountM2.6*0.25
RESOLUTION2MP
DIAMENSIONSφ2*2.1
Operating temp.-20 ~ +70℃
Storage temp.-25~ +80℃
