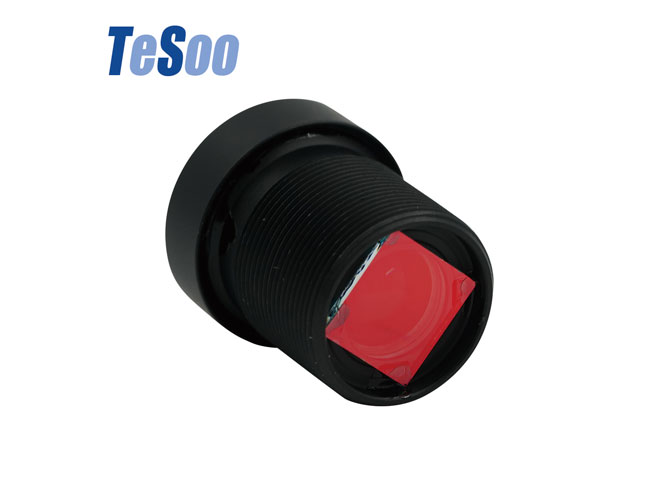

Tesoo 4mm Lens Angle of View

Tesoo 4mm lens angle of view not only extends the focal length of a camera but also amplifies its angle of field. The sensor size of the 4mm lens is 1/1.8'' to 1/3''. TTL:  8.47-38.4mm. EFL: 4.0- 4.60mm. F.NO: 0.9/1.2/2.2/2.6/2.8. MBFL: 1.48- 5.93mm. Get more information about the 4mm lens angle of view and a 4 mm lens price now! Being one of the biggest CCTV lens suppliers in China, we also provide other kinds of CCTV lens such as 2.8 mm lens fov, 4.5 mm lens, and so on.

Buy Tesoo 4mm Lens Angle of View   >

Sliding

02

Tesoo 4mm Lens Field of View Specifications

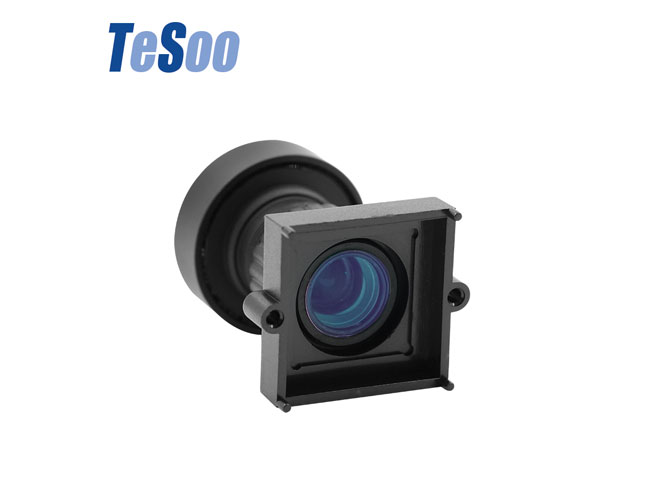

Lens 2.8 VS 4mm
4mm Lens
4 Mm Lens
4mm Lens Angle of View
PART No.TS-2723K-B00
TTL22.7mm
EFL4.0mm
F/NO1.2
MBFL5.23mm
SENSOR  SIZE1/2.7''
FOV
(D)105°
(H)89°
(V)49°
TV-DISTORTION<-12%
MAX IMAGE CIRCLEφ6.90mm
MountM12*0.5
CONSTRUCTION4E
DIAMENSIONSφ14*17.17
Operating temp.-20 ~ +70℃
Storage temp.-25 ~ +80℃


4 Mm Lens
4mm Lens Angle Of View
Lens 2.8 Vs 4mm
4mm Lens
PART No.TS-2732K-A00
TTL38.4mm
EFL4mm
F/NO0.9
MBFL5.06mm
SENSOR  SIZE1/2.7''
FOV
(D)132°
(H)111°
(V)59°
TV-DISTORTION<-18%
MAX IMAGE CIRCLEφ6.6mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ18*33.34
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Lens 2.8 VS 4mm
4mm Lens
4 Mm Lens
4mm Lens Angle of View
Lens 2.8 VS 4mm
4mm Lens
PART No.TS-1823N-A00
TTL23mm
EFL4.0mm
F/NO2.8
MBFL5.93mm
SENSOR  SIZE1/2.3''1/1.8''
FOVFOV
(D)118°135°
(H)93°110°
(V)69°73°
TV-DISTORTION<-20%<-25%
MAX IMAGE CIRCLEφ10.2mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*17.07
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


4 Mm Lens
4mm Lens Angle of View
Lens 2.8 VS 4mm
4mm Lens
PART No.TS-2709G-A08
TTL8.47mm
EFL4.60mm
F/NO2.6
MBFL1.48mm
SENSOR  SIZE1/3''
FOV
(D)68°
(H)59°
(V)38°
TV-DISTORTION<-1.5%
MAX IMAGE CIRCLEφ6.85mm
MountM9*0.35
CONSTRUCTION3G1MG+Metal
DIAMENSIONSφ9*6.99
Operating temp.-30 ~ +80℃
Storage temp.-40 ~ +85℃


4 Mm Lens
4mm Lens Angle of View
Lens 2.8 VS 4mm
4mm Lens
PART No.TS-2322H-A00
TTL22mm
EFL4.28mm
F/NO2.2
MBFL2.55mm
SENSOR  SIZE1/2.3''
FOV
(D)82°
(H)69°
(V)55°
TV-DISTORTION<-1.5%
MAX IMAGE CIRCLEφ8.30mm
MountM12*0.5
CONSTRUCTION4G2P+Metal
DIAMENSIONSφ14*19.45
Operating temp.-20 ~ +75℃
Storage temp.-25 ~ +80℃


4 Mm Lens
4mm Lens Angle of View
Lens 2.8 VS 4mm
4mm Lens
4 Mm Lens
4mm Lens Angle of View
Lens 2.8 VS 4mm
4mm Lens
4 Mm Lens
PART No.TS-1825I-A20
TTL25.3mm
EFL4.20mm
F/NO2.8
MBFL2.21mm
SENSOR  SIZE1/1.8''1/2.3''
FOVFOV
(D)93°78°
(H)81°68°
(V)65°55°
TV-DISTORTION<-0.5%<-0.3%
MAX IMAGE CIRCLEφ9.6mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ20*23.09
Operating temp.-20 ~ +80℃
Storage temp.-40 ~ +90℃
