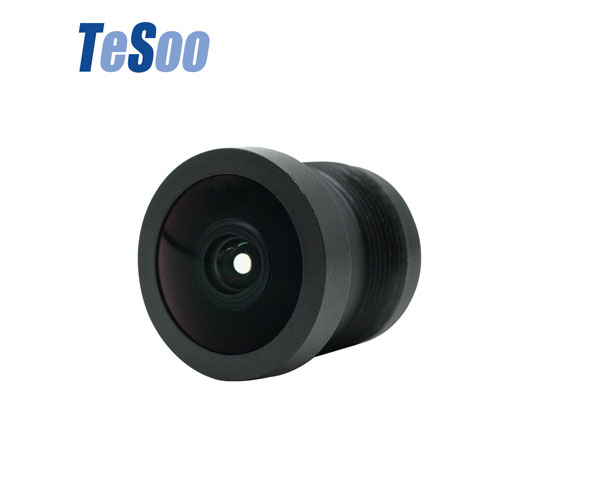

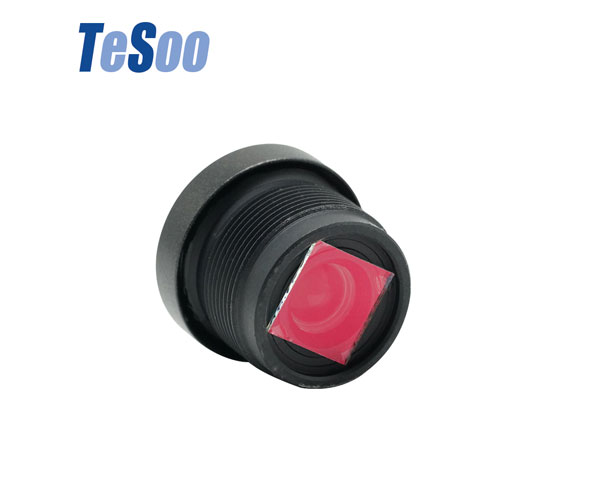

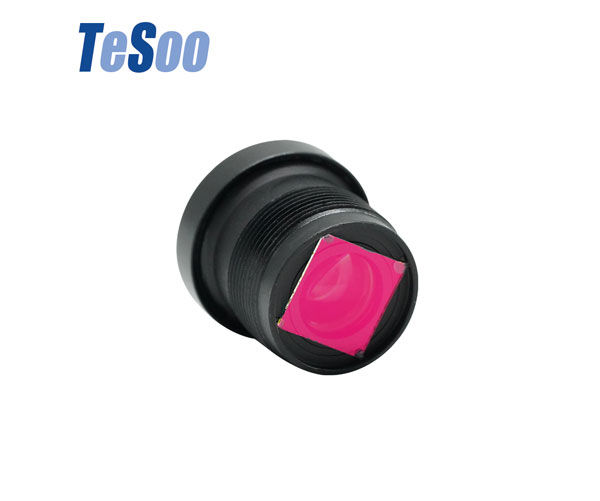

Tesoo 360 Degree Fisheye Lens

Tesoo 360 degree camera lens adds extra abstraction and dynamism to images, the previous mundane scenes thus being elevated. The sensor size of 360 fisheye lens is 1/2.3'' to 1/4''. TTL: 13-17.75mm. EFL: 0.83-2.20mm. F.NO: 1.8/2.0/2.2/2.4. MBFL: 1.69-2.63mm. Get 360 degree cheap fisheye lens price now!

Buy Tesoo 360 Degree Fisheye Lens   >

Sliding

02

Specifications of Tesoo 360 Degree Fisheye Lens


360 Degree Lens
Lens 360
360 Degree Camera Lens
360 Fisheye Lens
360 Camera Lens
PART No.TS-4013T-A00
TTL14.11mm
EFL0.83mm
F/NO2.0
MBFL1.69mm
SENSOR  SIZE1/4''1/3''
FOVFOV
(D)195°195°
(H)195°195°
(V)158°190°
DISTORTION(F-θ)<30%<30%
MAX IMAGE CIRCLEφ3.68mm
MountM12*0.5
CONSTRUCTION2G4P+Plastic
IP RatingIPX7 or IP69K
DIAMENSIONSφ14/16*12.42
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


360 Degree Lens
Lens 360
360 Degree Camera Lens
360 Fisheye Lens
360 Camera Lens
PART No.TS-4013T-A01
TTL14.11mm
EFL0.83mm
F/NO2.0
MBFL1.69mm
SENSOR  SIZE1/4''1/3''
FOVFOV
(D)220°220°
(H)210°220°
(V)158°190°
DISTORTION(F-θ)<27%<27%
MAX IMAGE CIRCLEφ4.0mm
MountM12*0.5
CONSTRUCTION2G4P+Plastic
IP RatingIPX7 or IP69K
DIAMENSIONSφ14/16*12.42
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


360 Degree Lens
Lens 360
360 Degree Camera Lens
360 Fisheye Lens
360 Camera Lens
PART No.TS-3013U-A00
TTL13mm
EFL1.40mm
F/NO1.8
MBFL2.10mm
SENSOR  SIZE1/3''1/2.7''
FOVFOV
(D)210°210°
(H)210°210°
(V)130°150°
DISTORTION(F-θ)<-20%<-20%
MAX IMAGE CIRCLEφ4.40mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
IP RatingIPX7 or IP69K
DIAMENSIONSφ14/16*10.9
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


360 Degree Lens
Lens 360
360 Degree Camera Lens
360 Fisheye Lens
PART No.TS-2913U-A00
TTL13.2mm
EFL1.35mm
F/NO2.0
MBFL2.20mm
SENSOR  SIZE1/2.9''1/2.7''
FOVFOV
(D)215°215°
(H)215°215°
(V)130°140°
DISTORTION(F-θ)<-20%<-20%
MAX IMAGE CIRCLEφ4.70mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
IP RatingIPX7 or IP69K
DIAMENSIONSφ14/16*11
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


360 Camera Lens
360 Degree Lens
Lens 360
360 Degree Camera Lens
PART No.TS-2818S-A02
TTL16.64mm
EFL2.20mm
F/NO2.0
MBFL2.16mm
SENSOR  SIZE1/2.7''1/2.3''
FOVFOV
(D)188°200°
(H)160°176°
(V)85°130°
DISTORTION(F-θ)<-9.8%<-11%
MAX IMAGE CIRCLEφ6.90mm
MountM12*0.5
CONSTRUCTIONAll Glass+Metal
IP RatingIPX7 or IP69K
DIAMENSIONSφ14/16*14.48
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


360 Fisheye Lens
360 Camera Lens
360 Degree Lens
Lens 360
360 Degree Camera Lens
PART No.TS-2816T-A01
TTL15.89mm
EFL1.83mm
F/NO2.4
MBFL2.63mm
SENSOR  SIZE1/2.7''1/2.3''
FOVFOV
(D)212°220°
(H)180°198°
(V)102°150°
DISTORTION(F-θ)<-0.6%<-1%
MAX IMAGE CIRCLEφ6.80mm
MountM12*0.5
CONSTRUCTIONAll Glass+Metal
IP RatingIPX7 or IP69K
DIAMENSIONSφ14/16*13.26
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


360 Fisheye Lens
360 Camera Lens
360 Degree Lens
Lens 360
360 Degree Camera Lens
PART No.TS-2015T-A00
TTL14.8mm
EFL1.70mm
F/NO2.0
MBFL2.10mm
SENSOR  SIZE1/2.7''1/2.3''
FOVFOV
(D)200°200°
(H)190°200°
(V)100°150°
DISTORTION(F-θ)<-20%<-20%
MAX IMAGE CIRCLEφ5.90mm
MountM12*0.5
CONSTRUCTION2G4P+Metal
IP RatingIPX7 or IP69K
DIAMENSIONSφ14/16*13.26
Operating temp.-20 ~ +75℃
Storage temp.-25 ~ +80℃


360 Fisheye Lens
360 Camera Lens
360 Degree Lens
Lens 360
360 Degree Camera Lens
PART No.TS-2918X-A18
TTL17.75mm
EFL1.26mm
F/NO2.2
MBFL1.84mm
SENSOR  SIZE1/2.7''1/2.3''
FOVFOV
(D)240°240°
(H)240°240°
(V)150°222°
DISTORTION(F-θ)<-7%<-7%
MAX IMAGE CIRCLEφ4.90mm
MountM12*0.5
CONSTRUCTIONAll Glass+Metal
IP RatingIPX7 or IP69K
DIAMENSIONSφ18*15.91
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃
