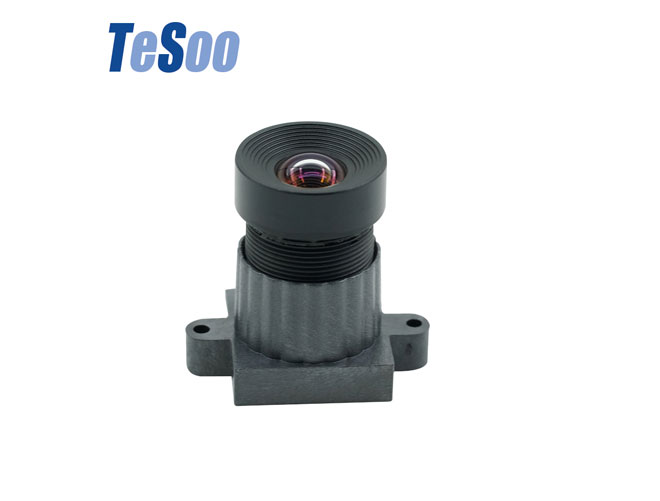

Tesoo Car ADAS Lens

Tesoo adas car lens generally meet the characteristics of wide angle, high relative illumination, high light and other features. It has a 1/2.5 lens. TTL: 15.02/15.69/16/16.73/22.11/22.4mm. EFL: 5.20/5.60/10.5/16mm. F.NO: 2.2/2.4/2.6/2.8/4.8. MBFL: 2.79/2.89/3.7/5.06/6.24mm. Get adas solutions now!

Buy Tesoo Car ADAS Lens   >

Sliding

02

Specifications of TesooCar ADAS Lens


Adas Solutions
Adas Automotive
Adas Car
Adas Advanced Driver Assistance System
PART No.TS-1817I-A00
TTL16.73mm
EFL5.60mm
F/NOF2.4
MBFL5.06mm
SENSOR  SIZE1/1.7''(16:9)1/2.3''(16:9)
FOVFOV
(D)90°75°
(H)79°66°
(V)45°37°
MAX IMAGE CIRCLEφ9.7mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*11.67
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Adas Autonomous Driving
1/2.5 Lens
1/2.6 Lens
Car Lens
Adas Solutions
PART No.TS-2022I-A00
TTL22.11mm
EFL5.60mm
F/NOF2.2
MBFL5.06mm
SENSOR  SIZE1/2''(16:9)1/2.3''(16:9)
FOVFOV
(D)92°76°
(H)80°66°
(V)46°38°
MAX IMAGE CIRCLEφ8.70mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*17.05
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


1/2.6 Lens
1/2.5 Lens
Adas Autonomous Driving
Adas Advanced Driver Assistance System
Adas Car
PART No.TS-2716G-A10
TTL15.69mm
EFL5.60mm
F/NOF2.6
MBFL6.24mm
SENSOR  SIZE1/2.7''1/2.8''
FOVFOV
(D)69°67°
(H)61°60°
(V)34°33°
MAX IMAGE CIRCLEφ6.80mm
MountM7*0.35
CONSTRUCTIONAll Glass+Metal
DIAMENSIONSφ8.1*9.45
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Car Lens
Adas Solutions
Adas Automotive
Adas Car
Adas Advanced Driver Assistance System
PART No.TS-2722G-A00
TTL22.4mm
EFL5.20mm
F/NOF2.2
MBFL3.7mm
SENSOR  SIZE1/2.6'1/2.7''
FOVFOV
(D)70°68°
(H)59°59°
(V)36°33°
MAX IMAGE CIRCLEφ7.20mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*18.8
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


1/2.5 Lens
1/2.6 Lens
Car Lens
Adas Solutions
PART No.TS-2015E-A06
TTL15.02mm
EFL10.5mm
F/NOF2.8
MBFL2.79mm
SENSOR  SIZE1/1.8''(16:9)1/2''(16:9)
FOVFOV
(D)44°46°
(H)38°40°
(V)27°28°
MAX IMAGE CIRCLEφ9.60mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*12.47
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Adas Automotive
Adas Car
Adas Advanced Driver Assistance System
1/2.5 Lens
1/2.6 Lens
PART No.TS-2716C-A00
TTL16mm
EFL16mm
F/NOF4.8
MBFL2.89mm
SENSOR  SIZE1/2.7"1/2.9"
FOVFOV
(D)25°23°
(H)22°18°
(V)13°15°
MAX IMAGE CIRCLEφ7.1mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*13.2
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃
