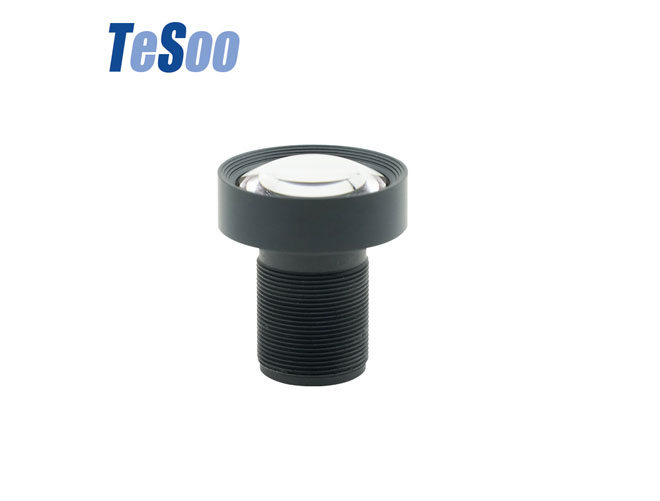

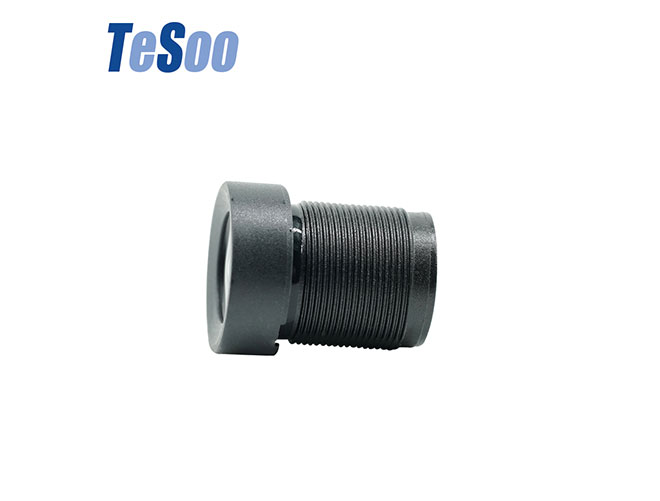

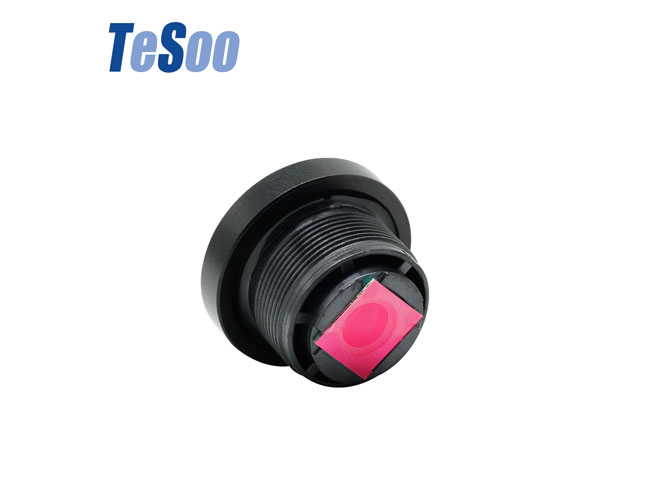

Tesoo S Mount M12 Lens

Tesoo s mount lens can increase the C port so that you can connect the M12 interface camera to the driving recorder. The sensor size of s mount m12 lens is 1/1.8''and 1/4''. TTL: 14.11-38.4mm. EFL: 0.83-10.50mm. F.NO: 0.9/1.8/2.0/2.2/2.4/2.8/4.0. MBFL: 1.69-5.91mm. Get s mount m12 camera lens price now!

Buy Tesoo S Mount M12 Lens   >

Sliding

02

Specifications of Tesoo S Mount M12 Lens


S Mount Lens
S Mount
S Mount M12
M12 Camera Lens
S Mount Lens
PART No.TS-4013T-A01
TTL14.11mm
EFL0.83mm
F/NO2.0
MBFL1.69mm
SENSOR SIZE1/4''1/3''
FOVFOV
(D)220°220°
(H)210°220°
(V)158°190°
MAX IMAGE CIRCLEφ4.0mm
MountM12*0.5
CONSTRUCTION2G4P+Plastic
IP RatingIPX7 or IP69K
DIAMENSIONSφ14/16*12.42
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


S Mount
S Mount M12
M12 Camera Lens
S Mount Lens
PART No.TS-1817I-A00
TTL16.73mm
EFL5.60mm
F/NOF2.4
MBFL5.06mm
SENSOR SIZE1/1.7''(16:9)
FOV
(D)90°
(H)79°
(V)45°
MAX IMAGE CIRCLEφ9.7mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
IP RatingAs Required
DIAMENSIONSφ14*11.67
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


S Mount
S Mount M12
M12 Camera Lens
S Mount Lens
PART No.TS-2818S-A02
TTL16.64mm
EFL2.20mm
F/NO2.0
MBFL2.16mm
SENSOR SIZE1/2.7''1/2.3''
FOVFOV
(D)188°200°
(H)160°176°
(V)85°130°
MAX IMAGE CIRCLEφ6.90mm
MountM12*0.5
CONSTRUCTIONAll Glass+Metal
IP RatingIPX7 or IP69K
DIAMENSIONSφ14/16*14.48
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃



S Mount
S Mount M12
M12 Camera Lens
S Mount Lens
S Mount
PART No.TS-2323O-A17
TTL23mm
EFL3.20mm
F/NO1.8
MBFL5.91mm
SENSOR SIZE1/2.3''1/2.7''
FOVFOV
(D)152°124°
(H)117°107°
(V)86°59°
TV-DISTORTION＜-30%＜-25%
MAX IMAGE CIRCLEφ8.20mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ17*17.09
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


S Mount M12
M12 Camera Lens
S Mount Lens
S Mount
S Mount M12
PART No.TS-2918X-A18
TTL17.75mm
EFL1.26mm
F/NO2.2
MBFL1.84mm
SENSOR SIZE1/2.7''1/2.3''
FOVFOV
(D)240°240°
(H)240°240°
(V)150°222°
MAX IMAGE CIRCLEφ4.90mm
MountM12*0.5
CONSTRUCTIONAll Glass+Metal
IP RatingIPX7 or IP69K
DIAMENSIONSφ18*15.91
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


M12 Camera Lens
S Mount Lens
S Mount
S Mount M12
PART No.TS-2015E-A00
TTL15.02mm
EFL10.50mm
F/NO4.0
MBFL5.06mm
SENSOR SIZE1/2.5''1/2''
FOVFOV
(D)38°46°
(H)33°40°
(V)19°28°
TV-DISTORTION＜-1%＜-1.4%
MAX IMAGE CIRCLEφ9.60mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*17.05
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


M12 Camera Lens
S Mount Lens
S Mount
S Mount M12
PART No.TS-2732K-A00
TTL38.4mm
EFL4mm
F/NO0.9
MBFL5.06mm
SENSOR SIZE1/2.7''
FOV
(D)132°
(H)111°
(V)59°
TV-DISTORTION＜-18%
MAX IMAGE CIRCLEφ6.6mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ18*33.34
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


M12 Camera Lens
S Mount Lens
S Mount
S Mount M12
M12 Camera Lens
S Mount Lens
S Mount
S Mount M12
M12 Camera Lens
PART No.TS-1825I-A20
TTL25.3mm
EFL4.20mm
F/NO2.8
MBFL2.21mm
SENSOR SIZE1/1.8''1/2.3''
FOVFOV
(D)93°78°
(H)81°68°
(V)65°55°
TV-DISTORTION＜-0.5%＜-0.3%
MAX IMAGE CIRCLEφ9.6mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ20*23.09
Operating temp.-20 ~ +80℃
Storage temp.-40 ~ +90℃


S Mount Lens
S Mount
S Mount M12
M12 Camera Lens
S Mount Lens
PART No.TS-2717O-A00
TTL16.81mm
EFL3.20mm
F/NO2.2
MBFL3.68mm
SENSOR SIZE1/2.7''1/3''
FOVFOV
(D)150°128°
(H)118°105°
(V)60°54°
TV-DISTORTION＜-32%＜-26%
MAX IMAGE CIRCLEφ6.90mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*13.13
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


M12 Camera Lens
S Mount Lens
S Mount
S Mount M12
PART No.TS-2722L-B00
TTL22.3mm
EFL1.65mm
F/NO2.0
MBFL5.2mm
SENSOR SIZE1/2.8''1/2.7''
FOVFOV
(D)118°120°
(H)110°115°
(V)84°85°
TV-DISTORTION＜-1%＜-1.5%
MAX IMAGE CIRCLEφ8.30mm
MountM12*0.5
Resolution4K/8MP
DIAMENSIONSφ14*17.1
Operating temp.-20 ~ +70℃
Storage temp.-40 ~ +80℃
