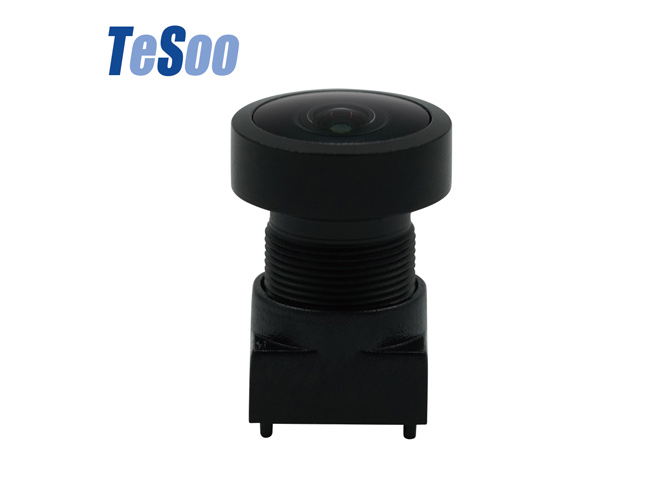

Tesoo Mini Fisheye Lens

Tesoo mini fisheye lens adds extra abstraction and dynamism to images, the previous mundane scenes thus being elevated. The sensor size of mini fisheye lens is 1/2.5'' and 1/4''. TTL: 11.91-14.11mm. EFL: 0.83-1.98mm. F.NO: 1.8/2.0. MBFL:  1.69-2.6mm. Get small fisheye lens price now!

Buy Tesoo Mini Fisheye Lens   >

Sliding

02

Specifications of Tesoo Mini Fisheye Lens


Small Fisheye Lens
Mini Fisheye Lens
Small Fisheye Lens
Mini Fisheye Lens
Small Fisheye Lens
Mini Fisheye Lens
PART No.TS-2314T-A10
TTL14mm
EFL1.80mm
F/NO2.0
MBFL2.33mm
SENSOR SIZE1/4''1/2.8''
FOVFOV
(D)177°200°
(H)136°200°
(V)79°105°
TV-DISTORTION＜-45%＜-52%
MAX IMAGE CIRCLEφ4.7mm
MountM7*0.35
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ10*11.67
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Small Fisheye Lens
Mini Fisheye Lens
Small Fisheye Lens
Mini Fisheye Lens
Small Fisheye Lens
PART No.TS-2512T-A10
TTL11.91mm
EFL1.98mm
F/NO2.0
MBFL2.6mm
SENSOR SIZE1/2.5''
FOV
(D)185°
(H)185°
(V)117°
MAX IMAGE CIRCLEφ5.60mm
MountM8*0.35
CONSTRUCTION6E
IP RatingCan be customized
DIAMENSIONSφ9.5*9.1
Operating temp.-20 ~ +75℃
Storage temp.-25 ~ +80℃


Mini Fisheye Lens
Small Fisheye Lens
Mini Fisheye Lens
Small Fisheye Lens
PART No.TS-2913U-A00
TTL13.2mm
EFL1.35mm
F/NO2.0
MBFL2.20mm
SENSOR SIZE1/2.9''1/2.7''
FOVFOV
(D)215°215°
(H)215°215°
(V)130°140°
MAX IMAGE CIRCLEφ4.70mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
IP RatingIPX7 or IP69K
DIAMENSIONSφ14/16*11
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Fisheye Lens
Fisheye Lens Price
Mini Fisheye Lens
Small Fisheye Lens
PART No.TS-4013T-A01
TTL14.11mm
EFL0.83mm
F/NO2.0
MBFL1.69mm
SENSOR SIZE1/4''1/3''
FOVFOV
(D)220°220°
(H)210°220°
(V)158°190°
MAX IMAGE CIRCLEφ4.0mm
MountM12*0.5
CONSTRUCTION2G4P+Plastic
IP RatingIPX7 or IP69K
DIAMENSIONSφ14/16*12.42
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Mini Fisheye Lens
Small Fisheye Lens
Mini Fisheye Lens
Small Fisheye Lens
Mini Fisheye Lens
PART No.TS-2512T-A00
TTL12.2mm
EFL1.98mm
F/NO2.0
MBFL2.6mm
SENSOR SIZE1/2.5''
FOV
(D)185°
(H)185°
(V)128°
MAX IMAGE CIRCLEφ5.60mm
MountM12*0.5
CONSTRUCTION6E
IP RatingCan be customized
DIAMENSIONSφ14*9.2
Operating temp.-20 ~ +75℃
Storage temp.-25 ~ +80℃


Small Fisheye Lens
Mini Fisheye Lens
Small Fisheye Lens
Mini Fisheye Lens
Small Fisheye Lens
PART No.TS-3013U-A00
TTL13mm
EFL1.40mm
F/NO1.8
MBFL2.10mm
SENSOR SIZE1/3''1/2.7''
FOVFOV
(D)210°210°
(H)210°210°
(V)130°150°
MAX IMAGE CIRCLEφ4.40mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
IP RatingIPX7 or IP69K
DIAMENSIONSφ14/16*10.9
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃
