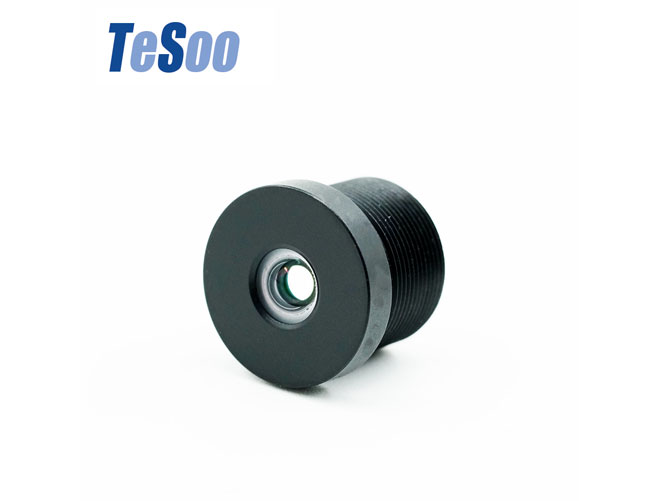

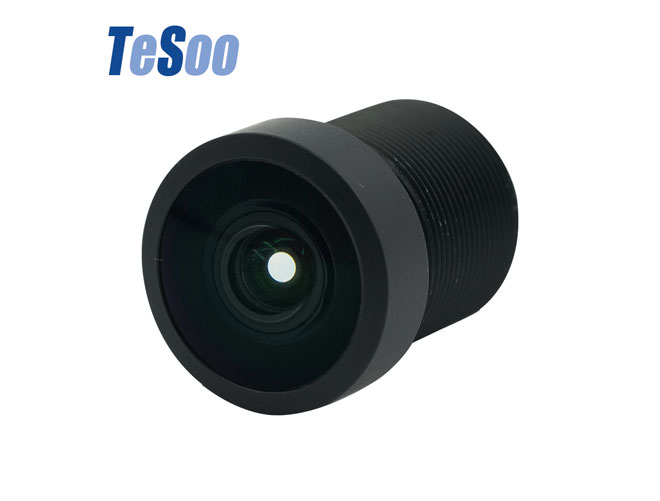

Tesoo Large Format Lenses

Tesoo large format lenses play a vital role in atmosphere data collection and weather condition prediction. The sensor size of large format camera lens is 1/1.7'' to 1/2.3''. TTL: 15.02-23mm. EFL:  2.95-10.5mm. F.NO: 2.0/2.2/2.4/2.8. MBFL: 2.79-5.93mm. Large format lenses for sale, contact us now!

Buy Tesoo Large Format Lenses   >

Sliding

02

Specifications of Tesoo Large Format Lenses


Large Format Lenses
1/1.7 Lens
Large Format Lenses for Sale
Large Format Camera Lens
PART No.TS-1817I-A00
TTL16.73mm
EFL5.60mm
F/NOF2.4
MBFL5.06mm
SENSOR SIZE1/1.7''(16:9)
FOV
(D)90°
(H)79°
(V)45°
MAX IMAGE CIRCLEφ9.7mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*11.67
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Large Format Lenses
1/1.7 Lens
Large Format Lenses for Sale
Large Format Camera Lens
PART No.TS-2015E-A06
TTL15.02mm
EFL10.5mm
F/NOF2.8
MBFL2.79mm
SENSOR  SIZE1/1.8''(16:9)
FOV
(D)44°
(H)38°
(V)27°
MAX IMAGE CIRCLEφ9.60mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*12.47
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Large Format Lenses for Sale
Large Format Camera Lens
Large Format Lenses
1/1.7 Lens
Large Format Lenses for Sale
PART No.TS-2022I-A00
TTL22.11mm
EFL5.60mm
F/NOF2.2
MBFL5.06mm
SENSOR  SIZE1/2''(16:9)
FOV
(D)92°
(H)80°
(V)46°
MAX IMAGE CIRCLEφ8.70mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*17.05
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃


Large Format Lenses
1/1.7 Lens
Large Format Lenses for Sale
Large Format Camera Lens
Large Format Lenses
1/1.7 Lens
PART No.TS-1823N-A00
TTL23mm
EFL4.0mm
F/NOF2.8
MBFL5.93mm
SENSOR  SIZE1/1.8''
FOV
(D)135°
(H)110°
(V)73°
MAX IMAGE CIRCLEφ10.3mm
MountM12*0.5
CONSTRUCTIONAll Glass +Metal
DIAMENSIONSφ14*17.07
Operating temp.-40 ~ +85℃
Storage temp.-40 ~ +90℃
